TM1200 Thermoforming Machine
Send us your application details. Our engineering and sales team will contact you regarding TM1200 Thermoforming Machine.
Machine Code: TM1200
Dimensions: 14.00 m (L) × 3.00 m (H) – Weight: 21,000 kg (3 stations)
Sheet Width: max 1,250 mm (+100 mm stretch)
Sheet Thickness: 0.2 – 1.5 mm
Product Height: Positive 150 mm / Negative 150 mm
Working Stroke: 160 mm / 160 mm
Materials: PET, CPET, PP, PVC, PS, OPS, PLA
Cycle Speed: up to 50 cycles/min (dry-run)

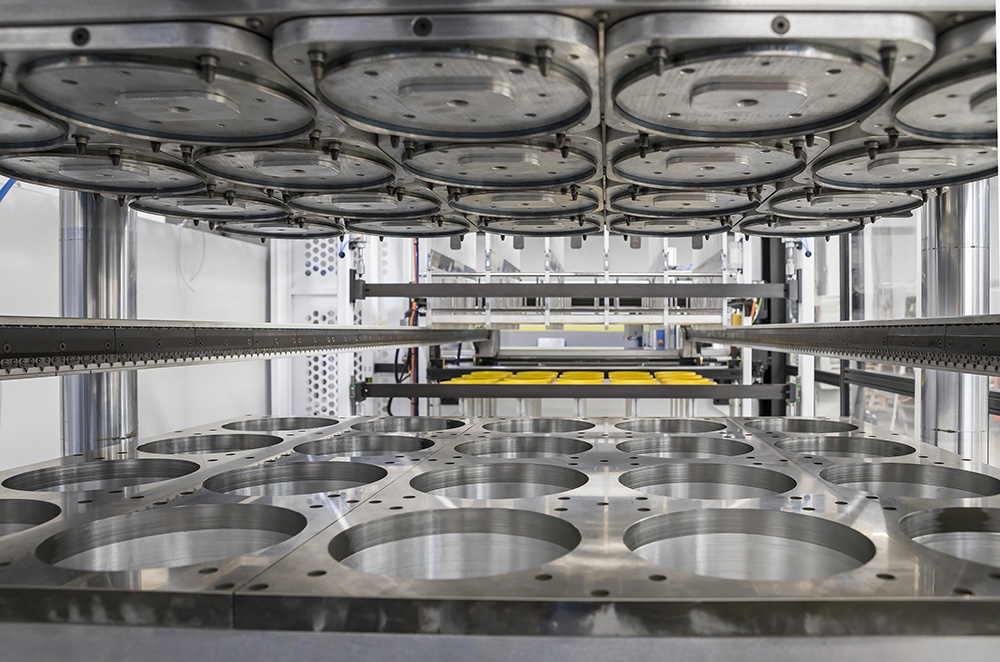

Mold Size: 1,300 × 910 mm

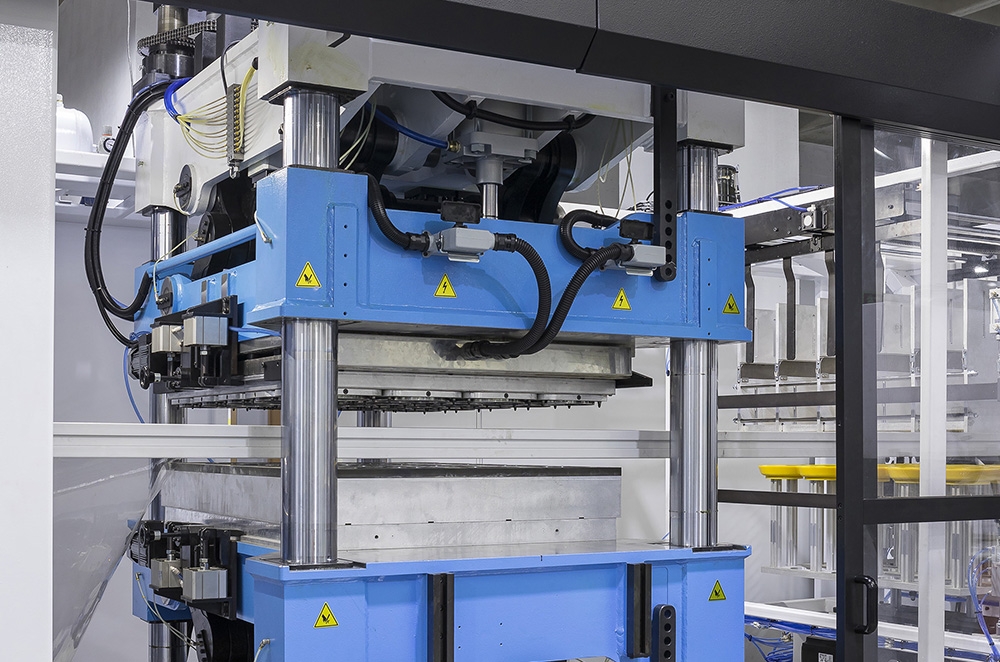

Clamping Force: Forming 100,000 daN | Punching 120,000 daN
Heater Power: 240 kW
Installed Power: 276 kW
Air Requirement (7 bar): 8 – 10 m³/min
Cooling Capacity: 35,000 Kcal/h
Vacuum Pump Capacity: 300 m³/h
