DST 1300 Slitting Machine

Name: DST 1300 Slitting Machine
Brand: PME Turkey

Engineering SupportTell us your material, width, output and application. We help configure the right machine.

Worldwide DeliveryExport, installation and commissioning support for international projects.

After-SalesTechnical assistance and spare parts support.

Request Technical Offer WhatsApp

Product ID 267Category Slitting Machines

Product Information

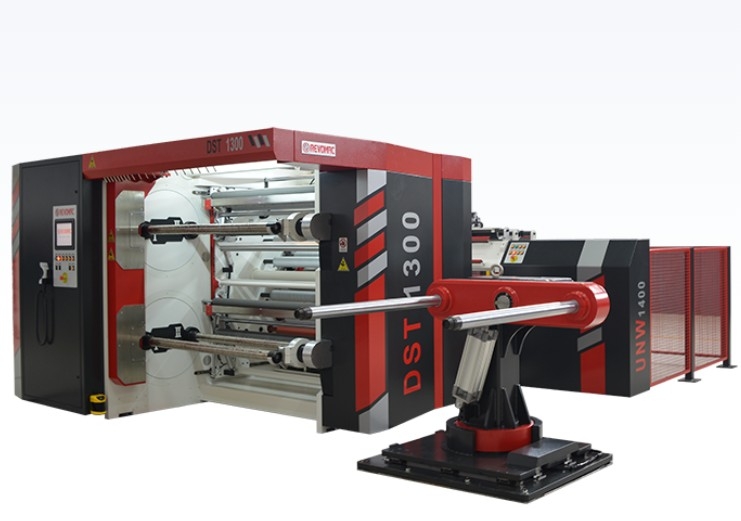

DST 1300 Slitting Machine

The DST 1300 Slitting Machine is equipped with a turret rewinder unit that enables high-speed rewinding with maximum quality, even in high tonnage operations. Designed for the flexible packaging industry, it delivers high production capacity while ensuring an excellent balance between investment cost and performance. Advanced equipment and accessories guarantee consistent, high-quality production.

Technical Specifications:

Unwinding Reel Diameter: 1400 mm
Rewinder Reel Diameter: 600 mm
Working Width: 1000 mm / 1300 mm / 1600 mm
Unwinding Core Diameter: 76 mm (3”) / 152 mm (6”)
Rewinder Core Diameter: 76 mm (3”) / 152 mm (6”) (Optional)
Minimum Slitting Width: 50 mm (25 mm Optional)
Machine Speed: Up to 800 m/min

Slitting Systems:

Circular Knife Slitting System
Razor Blade Slitting System

Workable Materials:

Films: 12 – 180 micron (CPP, OPP, BOPP, BOPA, LLDPE, LDPE, HDPE, PET, PETP, PVC)
Laminates: Various materials up to 180 microns
Paper & Board: 20 – 250 gr/m²
Aluminum: Foil up to 180 microns

DST 1300 Slitting Machine
