Bag Cutting Machine
Send us your application details. Our engineering and sales team will contact you regarding Bag Cutting Machine 850.
Product Description:

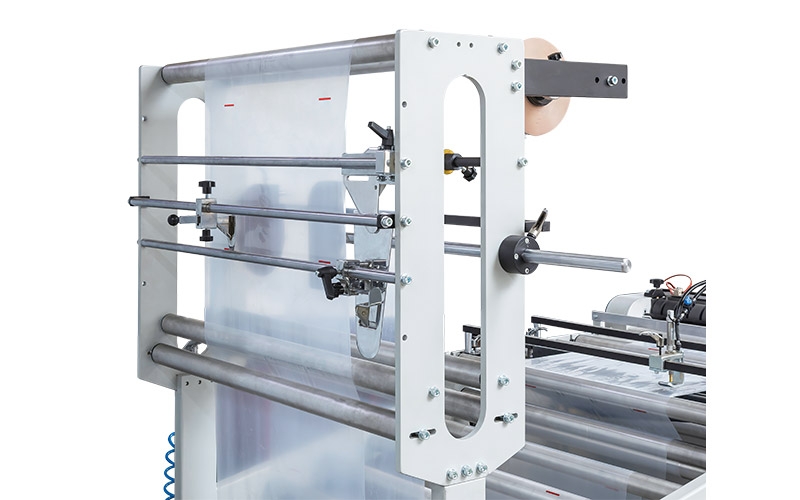

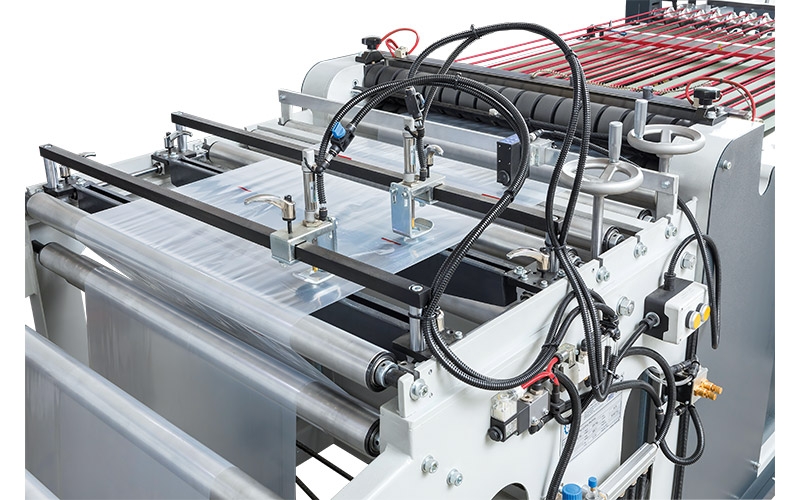

The Bag Cutting Machine 850 is a high-speed, PLC-controlled system designed for precise cutting of plastic bags and films.
Equipped with a Siemens S7-1200 PLC and 7-inch color touchscreen, it provides accurate operation, efficient performance, and full automation.
The system integrates advanced servo motor film control, pneumatic mechanisms, and automatic stacking, making it ideal for industrial-scale bag production lines.
Technical Specifications:
Control System: Siemens S7-1200 PLC and 7-inch color touchscreen
Maximum Machine Speed: 220 pcs/min
Cutting Length Range: 80–2000 mm
Cutting Thickness Range: 0.020–0.120 × 2 microns
Printed Cutting Feature: Photocell
Film Control: 12 Nm Siemens Servo Motor
Edge Control: Inverter system
Warping System: Inverter-driven
Jib System: Digging jaw
Brake System: Pneumatic
Coil Spindle: Pneumatic
Bottom Bellows Apparatus: Included
Hole Punch Jig: Pneumatic
Stacker Belt: Automatic control
Tape Apparatus: Integrated
