Product Information

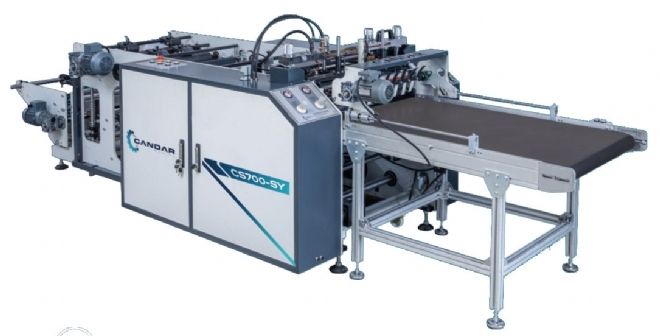

Bag Cutting Machine 700-1000

TECHNICAL SPECIFICATIONS

Control System: Siemens S71200 PLC and 7-inch Color Touch Screen
Film Control: 16 Nm Mitsubishi Servo Motor
Maximum Cutting Length Range: 140mm - 1100mm
Cutting Thickness Range: 0.020 - 0.100 * 2 micron
Printed Cutting Feature: Photocell
Automatically Controlled Moving Conveyor: Options available in 2m / 3m / 4m
Needleless Stacking Control: 7 Nm Mitsubishi Servo
Edge Control: Ultrasonic Sensor
Pneumatic Coil Brake System
Pneumatic or Hydraulic Coil Lifting System
Pneumatic and Inverter Ballerina Control
SMC Pneumatic Valve and Pistons
Double Pneumatic Handpiece
Adhesive Tape Attachment
Pneumatic Hole Tools: 2 tools
Air Coil Shaft and Mechanical Coil Shaft: 1 each
