Plastic Bag Machine 1000-1300

Converting Machines / Plastic Bag Making Machines

Plastic Bag Machine 1000-1300

Plastic Bag Machine

Engineering SupportTell us your material, width, output and application. We help configure the right machine.

Worldwide DeliveryExport, installation and commissioning support for international projects.

After-SalesTechnical assistance and spare parts support.

Request Technical Offer WhatsApp

Product ID 173Category Plastic Bag Making Machines

PME TURKEY

Request Technical Offer

Send us your application details. Our engineering and sales team will contact you regarding Plastic Bag Machine 1000-1300.

Selected MachinePlastic Bag Machine 1000-1300Product ID 173

Product Information

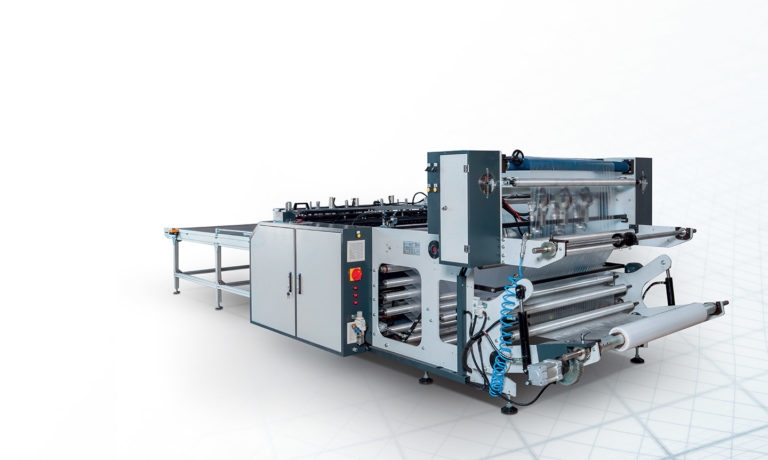

Plastic Bag Machine 1000-1300

TECHNICAL SPECIFICATIONS

Control System: Siemens S71200 PLC and 7-inch Color Touch Screen
Film Control: 16 Nm Mitsubishi Servo Motor
Cut Length Range: 150mm - 3000mm
Cutting Thickness Range: 0.007 - 0.150 * 2 micron (Cold Cut)
Printed Cutting Feature: Photocell
Automatically Controlled Moving Conveyor: Options available in 2m / 3m / 4m
Needleless Stacking Control: 7 Nm Mitsubishi Servo
Edge Control: Ultrasonic Sensor
Pneumatic Coil Brake System
Pneumatic or Hydraulic Coil Lifting System
Pneumatic and Inverter Ballerina Control
SMC Pneumatic Valve and Pistons
Flow-Controlled Hot Slicing Unit
Welding Control: 0.3 * 3 Ropex Wire
Pneumatic Hole Apparatus: 2 pieces
Coil Shafts: 1 Air Coil Shaft, 1 Mechanical Coil Shaft
