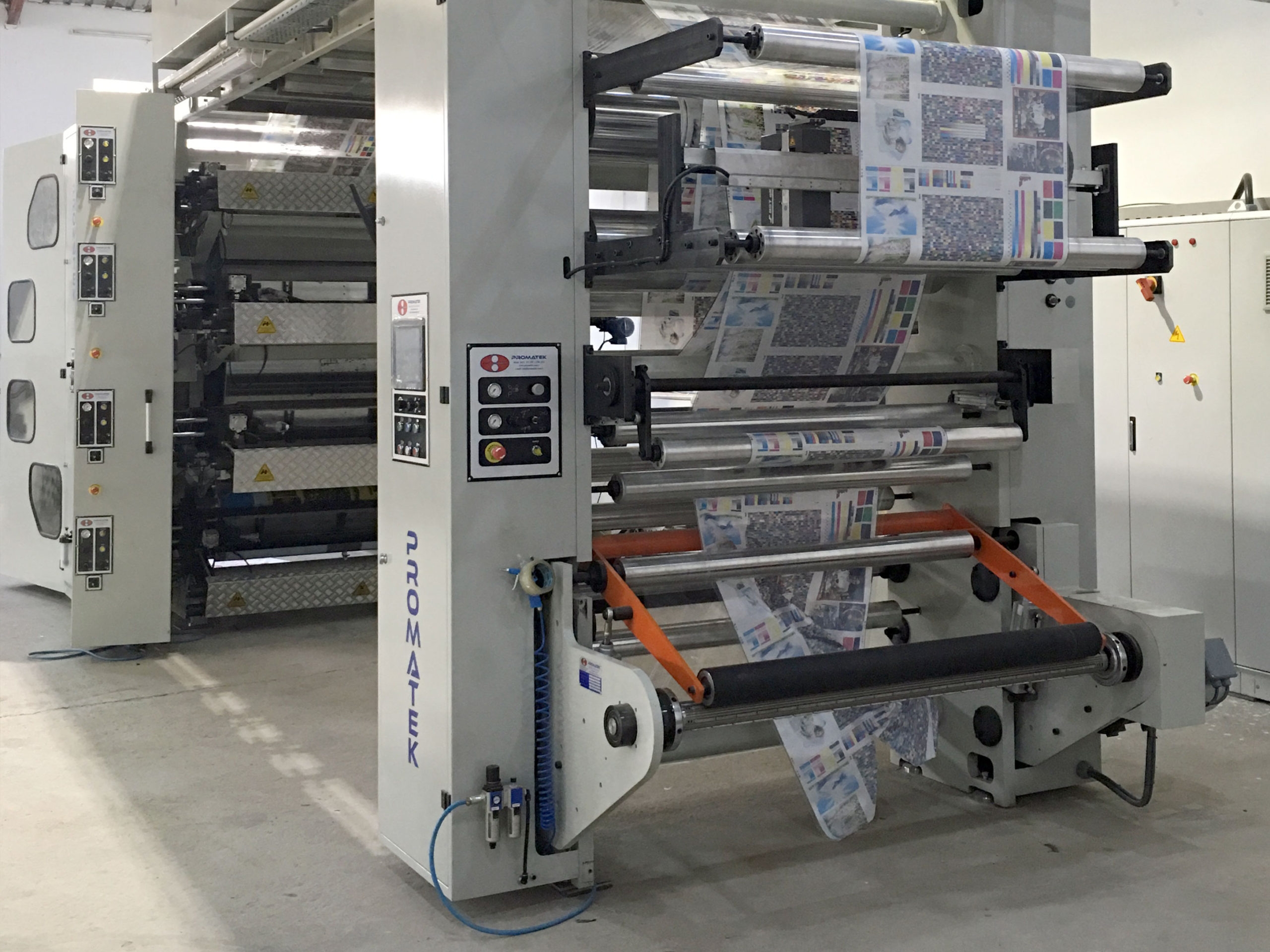

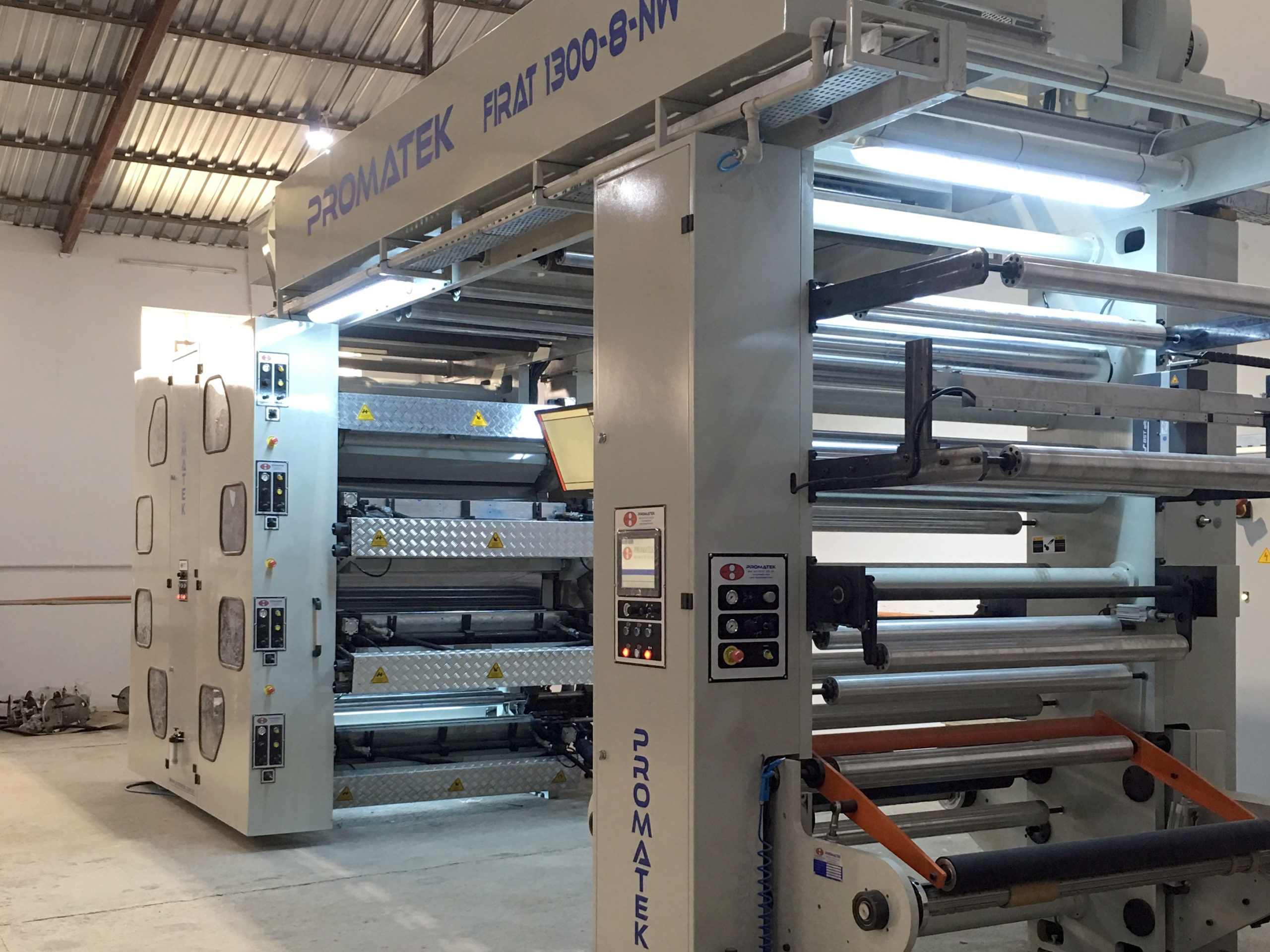

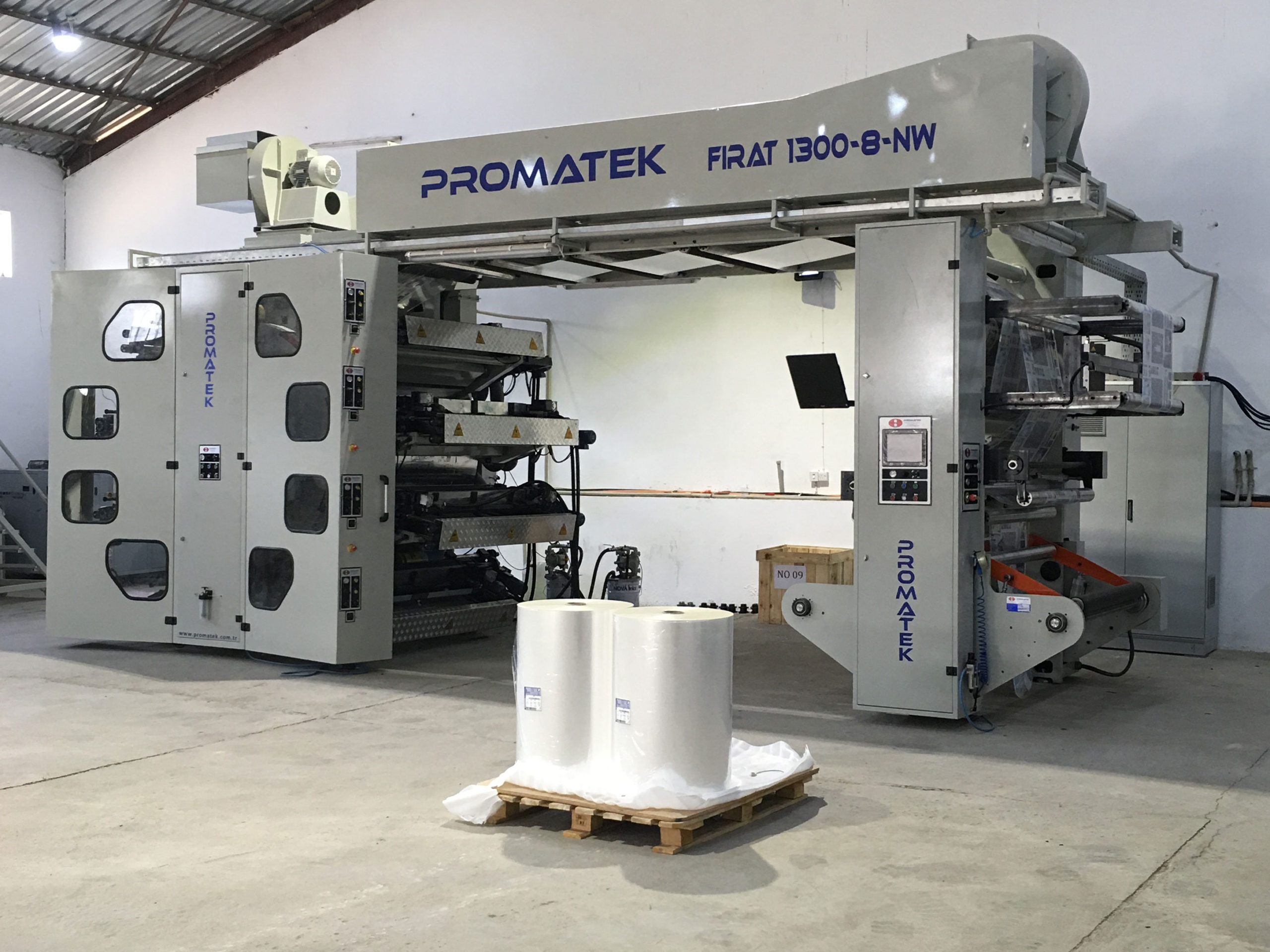

8 Colors Central Impression (CI) Flexo Printing Machine
Send us your application details. Our engineering and sales team will contact you regarding 8 Colors Central Impression (CI) Flexo Printing Machine.
The 8 Colors Central Impression Flexo Printing Machine is engineered for high-quality, precise, and fast printing on flexible packaging materials. Thanks to its central impression drum design and full servo-controlled system, it ensures perfect color registration, stable printing even at high speeds, and minimal waste. It is ideal for producing multi-color printing on PE, PP, OPP, CPP, PVC, HDPE, LDPE, BOPP, paper, and laminated films used in packaging, hygiene, and industrial applications.
| Feature | Specification |
|---|---|
| Printing Speed | Up to 300 m/min |
| Working Widths | 800 / 900 / 1000 / 1100 / 1200 / 1300 / 1400 / 1500 / 1600 mm |
| Max. Unwind Diameter | 800 mm |
| Max. Rewind Diameter | 800 mm |
| Core Inner Diameter | 76 mm (3") (152 mm optional) |
| Control System | PLC Control |
| Anilox Rollers | Ceramic Anilox |
| Tension System | Magnetic Brake |
| Web Guide | Edge Position Control System |
| Ink System | Doctor Blade System |
| Print Monitoring | Printing Observation System |
