3 Color Flexo Printing Machine

Name: 3 Color Flexo Printing Machine
Brand: PME Turkey

Engineering SupportTell us your material, width, output and application. We help configure the right machine.

Worldwide DeliveryExport, installation and commissioning support for international projects.

After-SalesTechnical assistance and spare parts support.

Request Technical Offer WhatsApp

Product ID 170Category Printing Machines

Product Information

3 Color Flexo Printing Machine

Embrace beauty in simplicity and mastery in impressive colors with our 3-color flexo printing machine. Bring your projects to life and unleash the power of details and vibrant hues. Elevate your designs with liveliness and make a lasting impact. Experience the perfect blend of innovation and quality, making us your go-to destination for simple yet effective, flawless prints!

TECHNICAL SPECIFICATIONS

3 Colors 130 cm / Product Transition 1300 mm
Net Printing Area 120 cm
3+0 3+3 Printing Opportunity
With Rotation System for 3+3 Printing
Dr Blade

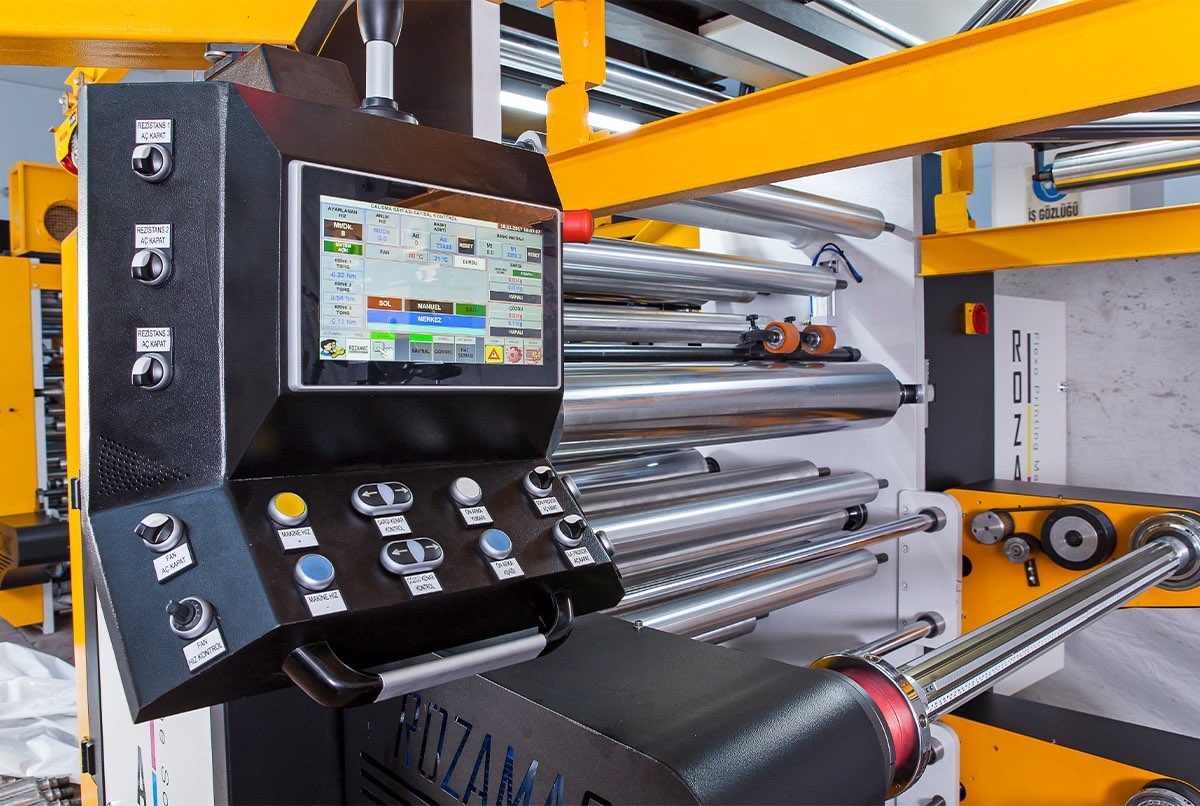

PLC Controlled 10 inch Touch Panel Controlled
2.4 Kw Servo 10 Nm Controlled Printing
Servo Reducers with Planetary
Decoiler System with Dust Brake
Solvent System Edge Controlled
Air Shaft with Locking Wheel
Winder System with 3 Kw Servo Motor and Edge Control
Pneumatic System Separating Plates from Printing When Printing is Finished
Plate Cylinders Docking Have Equal Execution
Anilox Values Are Adjusted According to Customer Request
The Pneumatic System Used is SMC Brand
2.2 Kw Invertor Controlled Fan and Serpentine Resistance
It has an air drying system
2 Sets of Plate Cylinder are Provided with the Machine
It has thin helical thrust gears
Mechanical Printing Speed 300 m/min
Chain Electric Hoist System for Plate and Anilox Cylinders
CE Conformity Certificated
Machine OPP-CPP-HDPE-LDPE-Nonwoven – Paper and PP
Ability to Print on Materials
