8 Color Flexo Printing Machine
Send us your application details. Our engineering and sales team will contact you regarding 8 Color Flexo Printing Machine.

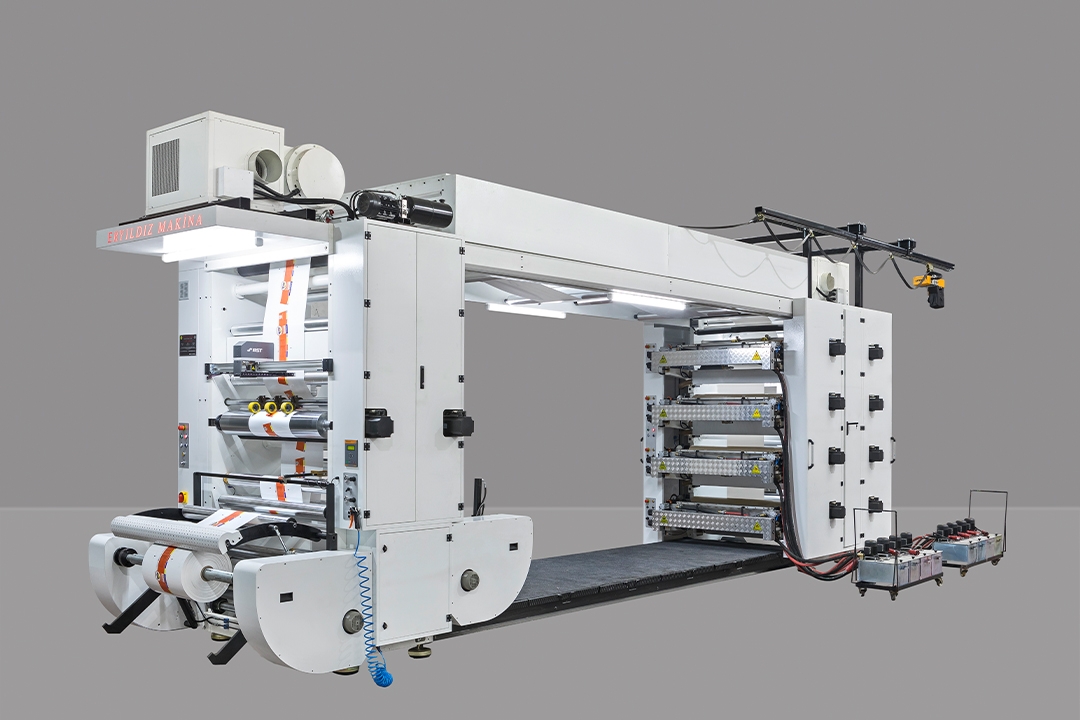

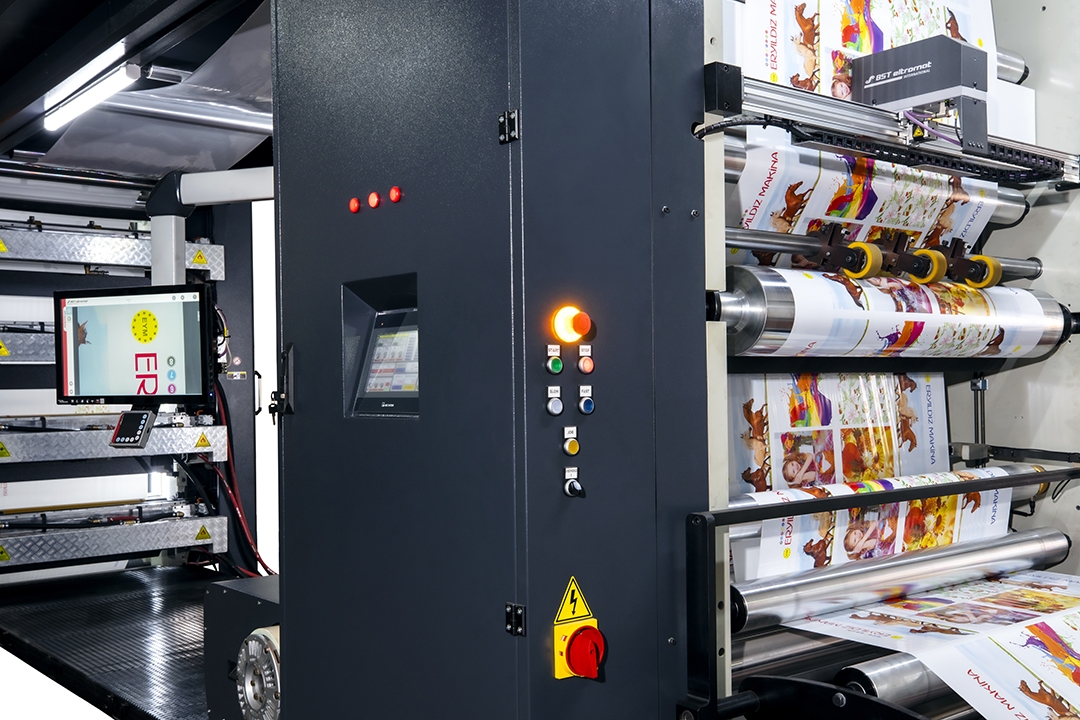

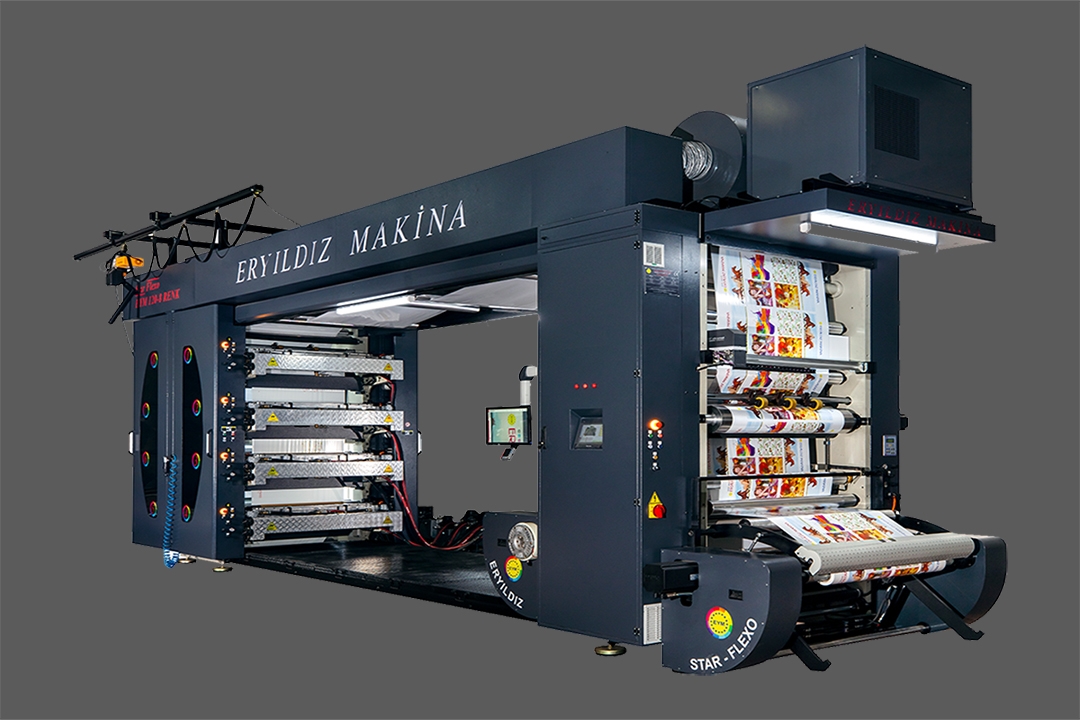

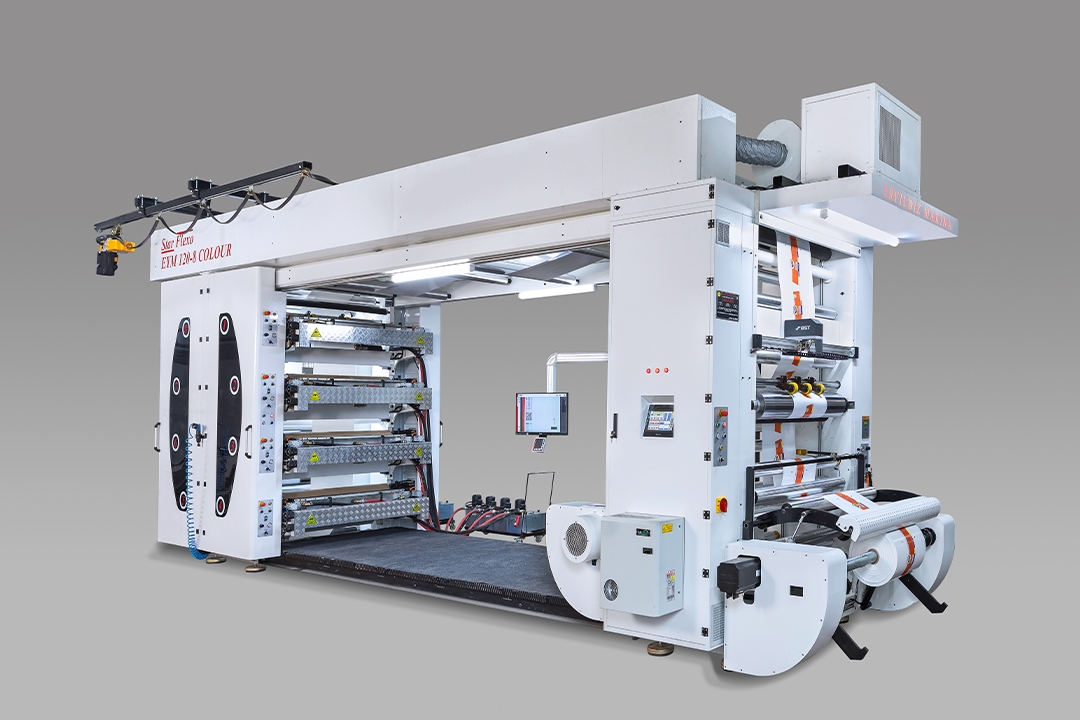

The 8 Color Stack Type Servo Flexo Printing Machine is designed for high-quality multi-color printing on flexible packaging materials. Thanks to its fully servo-driven control system, it offers excellent color registration accuracy, stable performance at high speeds, and minimal waste during production. Suitable for PE, PP, OPP, CPP, PVC, HDPE, LDPE, BOPP, metallized films and a wide range of packaging substrates, it is widely used in food packaging, industrial wrapping films, shopping bags, hygiene products and lamination-based printing applications.
| Feature | Specification |
|---|---|
| Model Options | 800-8 / 1000-8 / 1200-8 / 1400-8 / 1600-8 / 2000-8 / 2500-8 |
| Printing Length | 250 – 900 mm |
| Max. Printing Width | Up to 1200 mm (depends on model) |
| Main Roller Width | Up to 1250 mm (depends on model) |
| Printing System | 8 Color Servo System |
| Plate Thickness | 1.14 mm (optional: 2.54 – 2.84 mm) |
| Unwind / Rewind Diameter | Max. 1150 mm |
| Printing Speed | 20 – 300 m/min |
| Printing Configuration | 8+0 / 7+1 / 6+2 / 4+4 |
PE • PP • OPP • CPP • PVC • HDPE • LDPE • BOPP • Metallized Paper • Gelatin • Paper • Parchment • Bag Film • Pearlized Film
