Perforated Aluminium Rewinding Machine

Name: Perforated Aluminium Rewinding Machine
Brand: PME Turkey

Engineering SupportTell us your material, width, output and application. We help configure the right machine.

Worldwide DeliveryExport, installation and commissioning support for international projects.

After-SalesTechnical assistance and spare parts support.

Product ID 166Category Rewinding Machines

Product Information

Perforated Aluminium Rewinding Machine

MACHINE FEATURES

MACHINE

JUMBO

WINDING

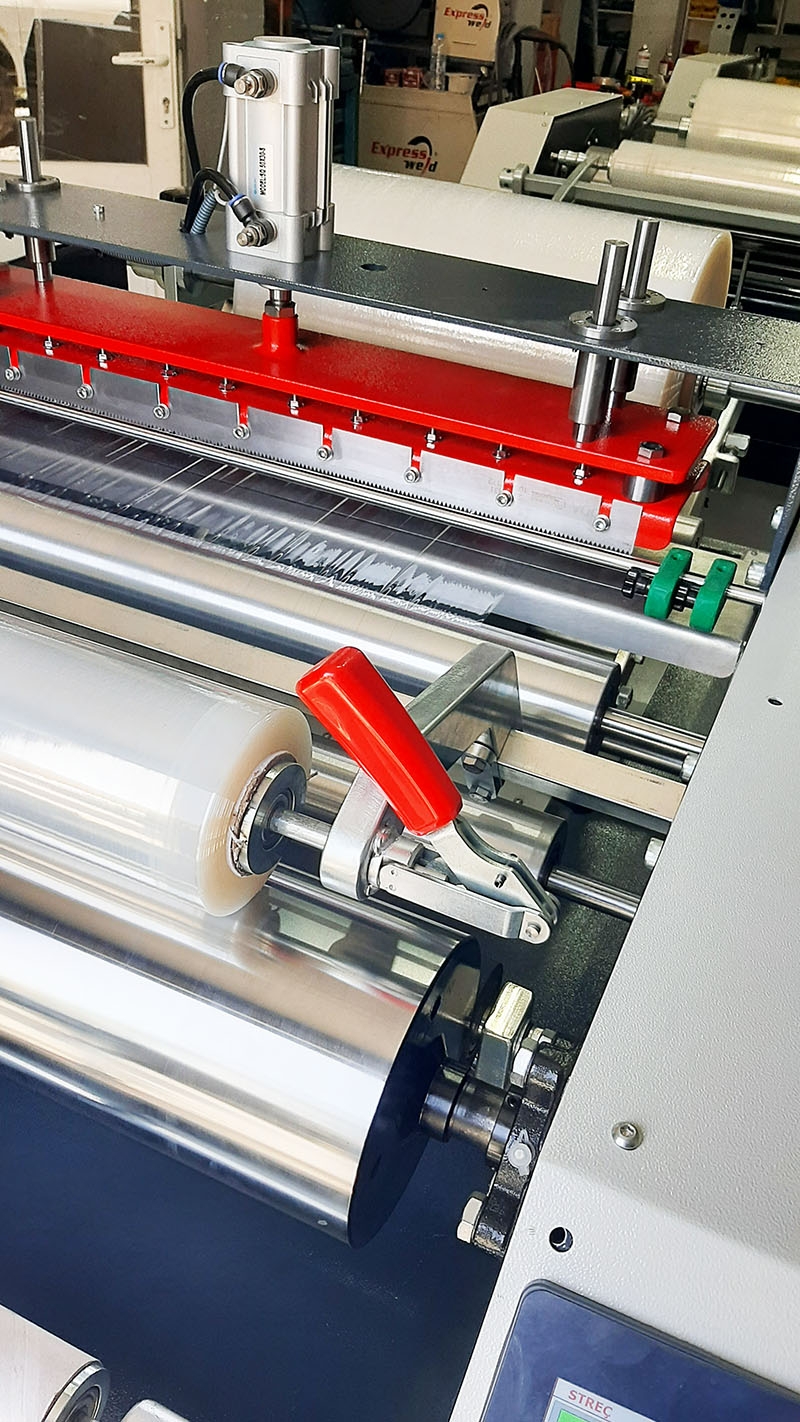

Pallet Stretch (PE)
- Stretch Thickness: 17 microns - 23 microns
- Stretch Width: 50 cm
- Bobbin Diameters: 38mm-50mm-76mm
- Maximum Winding Speed: 700m/min
- Winding Amount Range: 50m-1500m
- Wrapping Time: 38 seconds for 300m
Food Stretch (PE-PVC)
- Stretch Thickness: 8 microns - 13 microns
- Stretch Width: 30 cm – 45 cm
- Bobbin Diameters: 38mm-76mm
- Maximum Winding Speed: 700m/min
- Winding Amount Range: 30m-1500m
- Wrapping Time: 38 seconds for 300m

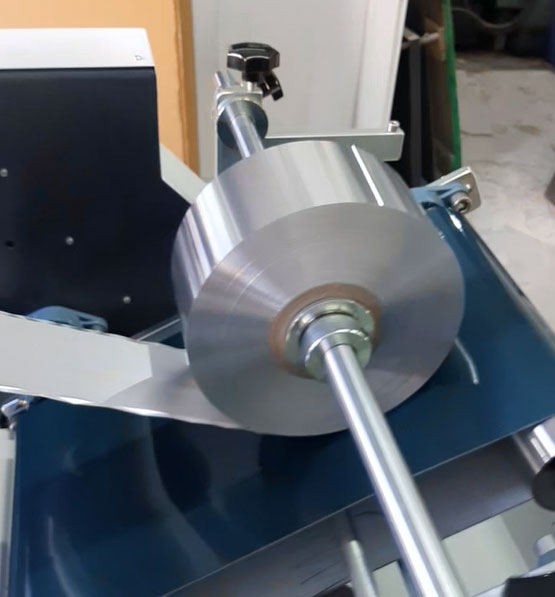

Aluminum Foil (Food Foil – Hookah Foil – Hairdresser Foil)
- Foil Thickness: 8 microns - 50 microns
- Foil Width: 10 cm – 50 cm
- Bobbin Diameters: 38mm
- Maximum Winding Speed: 500m/min
- Winding Amount Range: 3m-600m

SLICING

PE Pallet stretch can be sliced into 2-3-4-5 equal parts on 38 – 50 -76 gauge bobbins.
Aluminum foil can be sliced into 2-3-4 equal parts on a 38 mm bobbin.

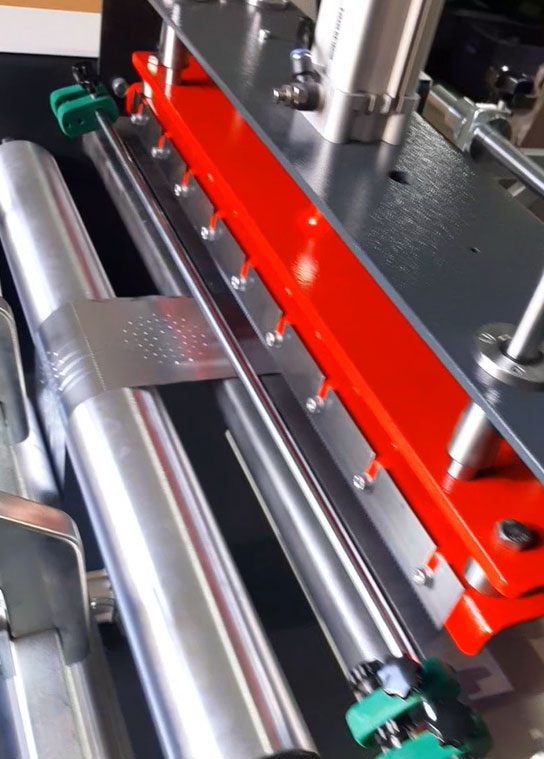

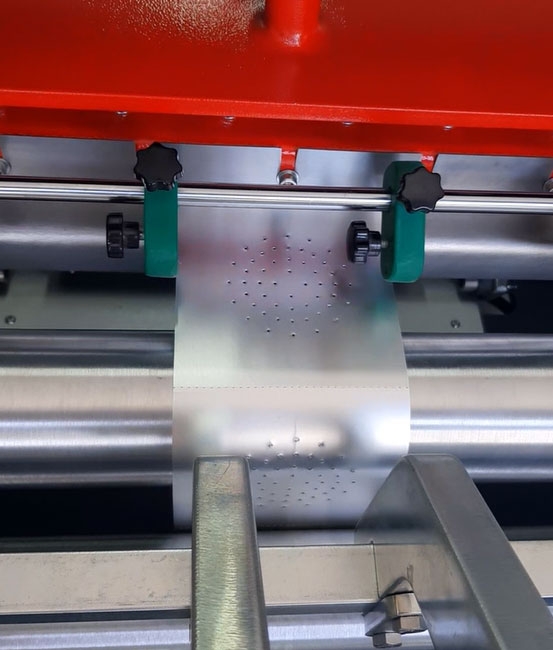

PERFORATED AND HOLE
