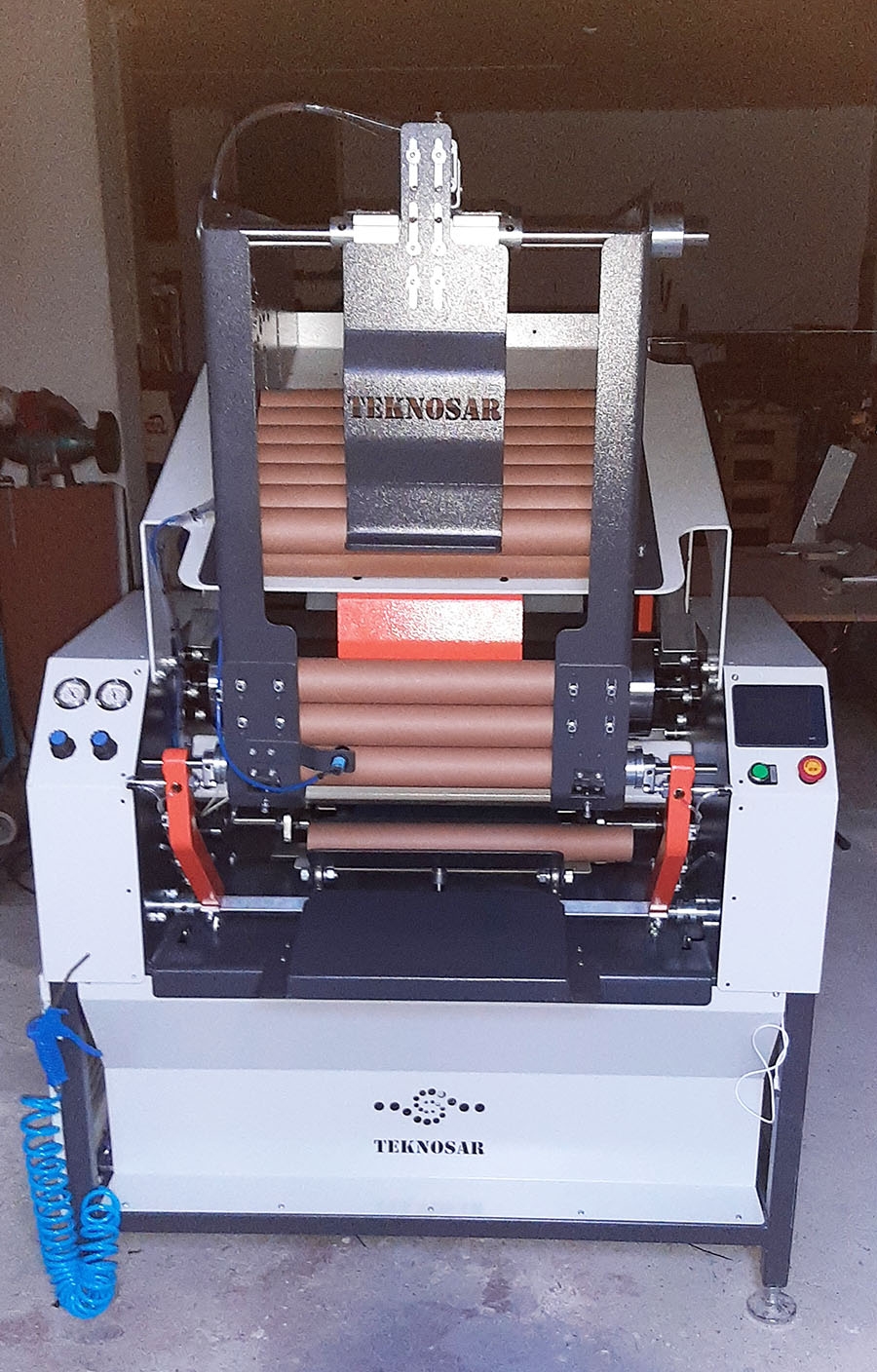

Full Automatic Stretch Film Rewinding Machine

Name: Full Automatic Stretch Film Rewinding Machine
Brand: PME Turkey

Stretch Film Rewinding

Engineering SupportTell us your material, width, output and application. We help configure the right machine.

Worldwide DeliveryExport, installation and commissioning support for international projects.

After-SalesTechnical assistance and spare parts support.

Product ID 163Category Rewinding Machines

Product Information

MACHINE SPECIFICATIONS

MACHINE

Motor Power: 4kW – 3000 RPM
Driver: Schneider ATV320
Screen: 4.1” Touch Screen
Power Supply: 380V
Pneumatics: Festo Brand
Air Pressure: 6 bar
Bobbin Hopper Capacity: 100 pieces of 38 mm, 50 pieces of 50 mm, and 20 pieces of 76 mm

JUMBO

WINDING

Pallet Stretch (PE)
- Bobbin Diameters: 38mm-50mm-76mm
- Maximum Winding Speed: 1200m/min
- Winding Amount Range: 50m-1500m
- Cycle Time: 26 seconds for 300m
Food Stretch (PE-PVC)
- Bobbin Diameters: 38mm-76mm
- Maximum Winding Speed: 1200m/min
- Winding Quantity Range: 30m-1500m
- Cycle Time: 26 seconds for 300m

MACHINE DIMENSIONS
