End Caps (Special R&D and Production
Send us your application details. Our engineering and sales team will contact you regarding End Caps (Special R&D and Production).
🔹 Product Overview

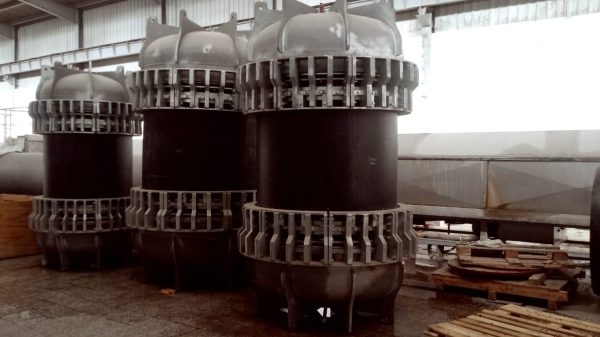

PME Turkey’s custom-engineered End Caps are precision-built components designed for hydrostatic pressure testing of plastic and composite pipes. These caps — including our 1600 mm diameter models manufactured for El Nour Company (Egypt) — combine strength, adaptability, and long-term reliability, meeting the highest international testing standards.
They are constructed using stainless steel (304 / 316L) or galvanized steel, ensuring durability under high-pressure testing conditions. The adjustable gasket design provides perfect sealing for various pipe diameters, making them suitable for PE, PP, PERT, and PEX pipes from 800 mm to 2600 mm.
🔹 Standards Compliance
TS EN ISO 1167
ASTM D 1598
ASTM D 1599
🔹 Key Technical Features
High-Pressure Resistance: Withstands extreme hydrostatic test pressures safely.
Premium Materials: Built with steel and stainless steel for longevity.
Adjustable Gasket: Enables flexible sealing across different diameters.
No Hammering or Pressing: Eliminates the need for manual force during installation.
Easy Mounting: Hydraulic-friendly and quick to set up.
Special Gasket Design: 3- or 4-lip structure for superior sealing efficiency.
Test Suitability: Ideal for long-term life-span and endurance tests.
Deformation Tolerance: Accommodates pipe shape changes during testing.
Screw Pressure Design: Replaces traditional hammer sealing with smooth tightening.
Adaptive Seal Production: Silicone/rubber seals compatible with 304–316L stainless standards.
Pipe Range: 800–2600 mm diameter compatibility.
🔹 Detailed Description
The PME Turkey End Cap system represents a new generation of pipe sealing technology developed through in-house R&D. Unlike conventional pressure caps that require hammering or external pressing, this design incorporates a screw-driven clamping system, ensuring a uniform, reliable seal every time.
Each unit features a special multi-lip gasket that adjusts automatically to pipe irregularities, maintaining full airtight sealing even under fluctuating pressure. Thanks to its hydraulic compatibility and easy-mount configuration, operators can assemble and dismantle the caps quickly and safely.
All sealing components are made using high-resistance silicone and rubber compounds, suitable for extreme conditions. These end caps are specifically optimized for hydrostatic endurance testing, conforming to TS EN ISO 1167 and ASTM D1598–D1599 standards — making them a trusted solution in laboratories and production testing facilities worldwide.
🔹 Benefits
✅ Precision: Perfect sealing and repeatable results under varying pressures.
✅ Durability: Stainless steel body and long-life gaskets.
✅ Efficiency: No need for pressing tools or hammering, saving time and labor.
✅ Versatility: Adjustable gasket fits multiple pipe diameters.
✅ Reliability: Designed for long-term testing and minimal maintenance.
