Glass Reinforced Polyester Pipe Pressure Testing Machine

Name: Glass Reinforced Polyester Pipe Pressure Testing Machine
Brand: PME Turkey

Engineering SupportTell us your material, width, output and application. We help configure the right machine.

Worldwide DeliveryExport, installation and commissioning support for international projects.

After-SalesTechnical assistance and spare parts support.

Request Technical Offer WhatsApp

Product ID 124Category Pressure Testing Machines

Product Information

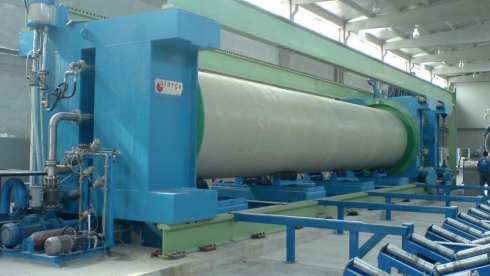

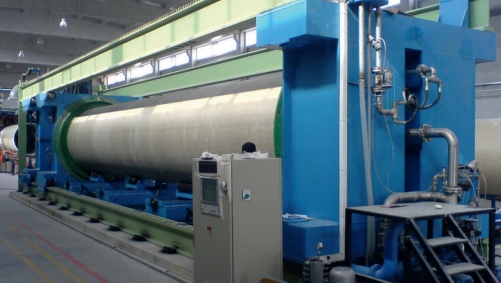

AL-PT GRP Pipe Pressure Test Machine

The AL-PT GRP Pipe Pressure Test Machine is designed to meet the standards of ASTM D 3517-3754, DIN 16869, and AWWA C950. This pressure test equipment is specifically tailored for testing GRP (Glass Reinforced Polyester) pipes, incorporating advanced features and a robust design to ensure accurate and reliable testing.

Standards Compliance

ASTM D 3517-3754
DIN 16869
AWWA C950

Technical Specifications

Control System: PLC-controlled mechanical system.
User Interface: Test control through a touch screen PC with completely digital control.
Automation: Automatic charging, pressurizing, and discharging.
Pressure Range: Capable of testing with a maximum pressure of 40 bars.
Pressure Balance System: 4 valves fuzzy logic hydraulic pressure balance system.
Pipe Handling: Hydraulic pipe lifting system for convenience.
Assembly: Automatic double-panel moving system for easy adjustment and fast assembly of test pipes.
Hydraulic Pistons: Four synchronized and position-controlled hydraulic pistons.
End Locking: Hole locking systems for pressure pipe end.
Data Logging: Real-time data logging and special software for reporting.
Leak Detection: Automatic leak detection system for enhanced accuracy.
Size Capacity: Suitable for pipes with up to 4000mm diameter and 15 meters in length.
Drive System: Hydraulic driving systems for efficiency.
Frame Construction: Rigid frame calculated with computer simulation for durability.
Water Level Adjustment: Automatic water level adjustment system with a special water level sensing system.
Gasket Design: 3 lips/4 lips special gasket design for optimal sealing.
Adjustment: 3-speed position and ergonomic test conditions for versatility.

Benefits

Precision: Ensures accurate testing results with advanced control and automation features.
Efficiency: Automatic systems for charging, pressurizing, discharging, and water level adjustment enhance operational efficiency.
Reliability: Robust construction and real-time data logging provide reliable performance and traceable results.
Convenience: Hydraulic systems for pipe handling and synchronized pistons facilitate easy and fast assembly and testing.
