Product Description:

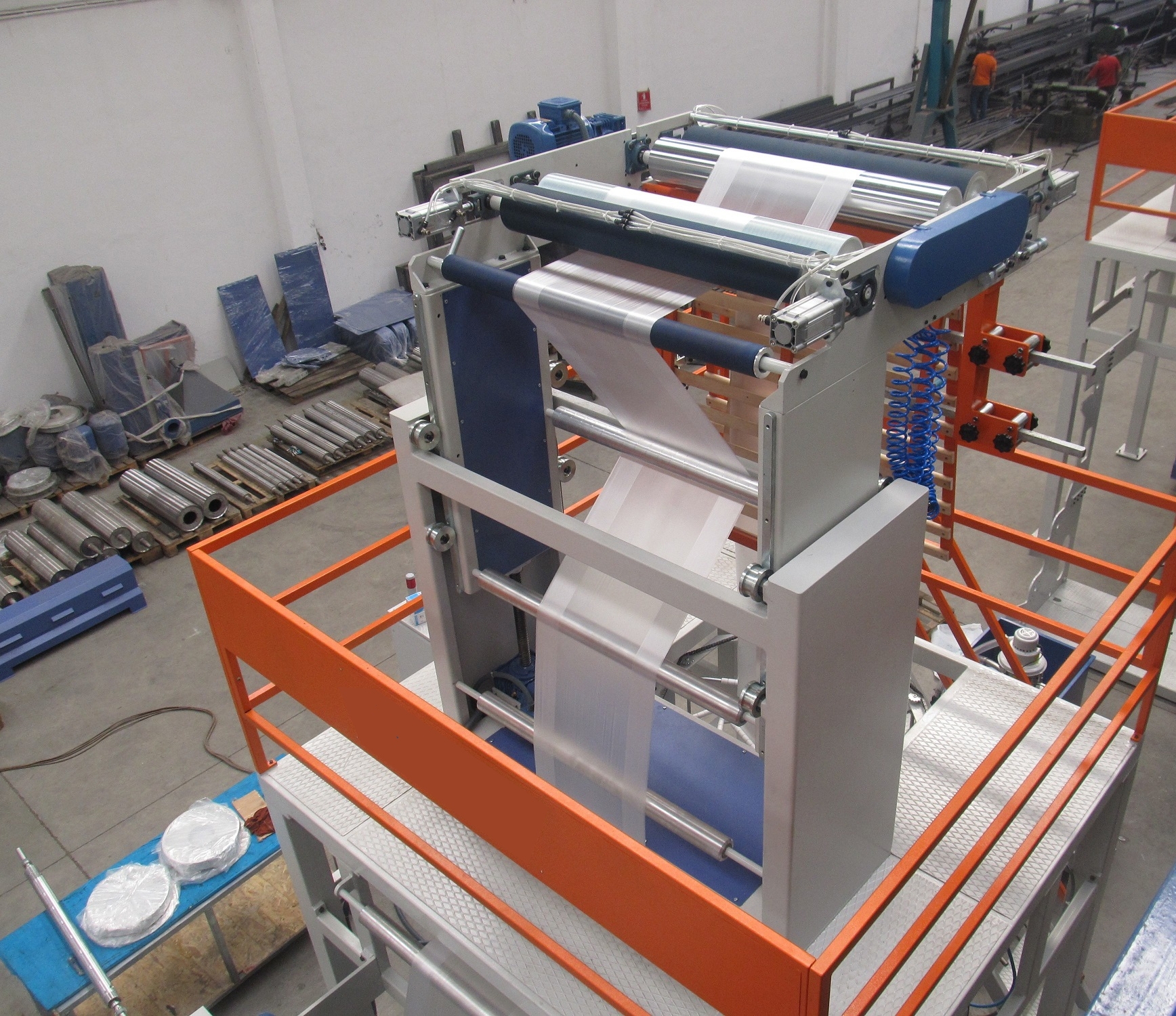

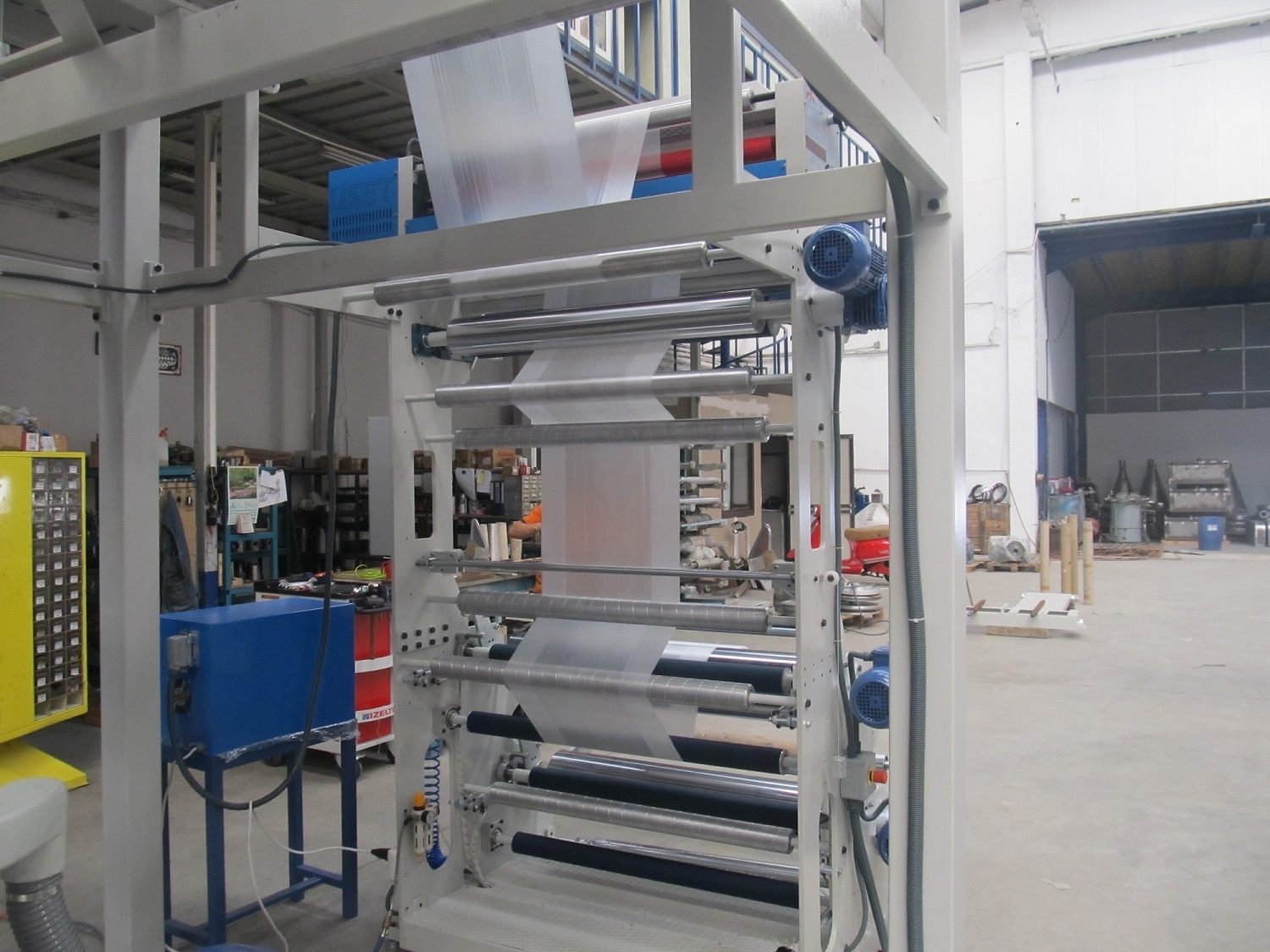

The MONO HDPE 60 Film Machine is a compact, high-efficiency extrusion line designed for HDPE and LDPE film production.
With a maximum film width of 1000 mm and an output capacity of 110 kg/h, this system ensures stable operation and uniform film quality.
Equipped with a Ø60 mm screw, fixed die head, and adjustable height up to 6 meters, it provides consistent performance for packaging and industrial applications.
The optional automatic or manual winder and rotating tower (vertical or horizontal) add flexibility, making it ideal for diverse production layouts.
Technical Specifications:
Maximum Film Width: 1000 mm
Film Thickness: HDPE 0.008–0.200 mm / LDPE 0.025–0.250 mm
Production Capacity: 110 kg/h
Screw Diameter: Ø60 mm
Die Type: Fixed

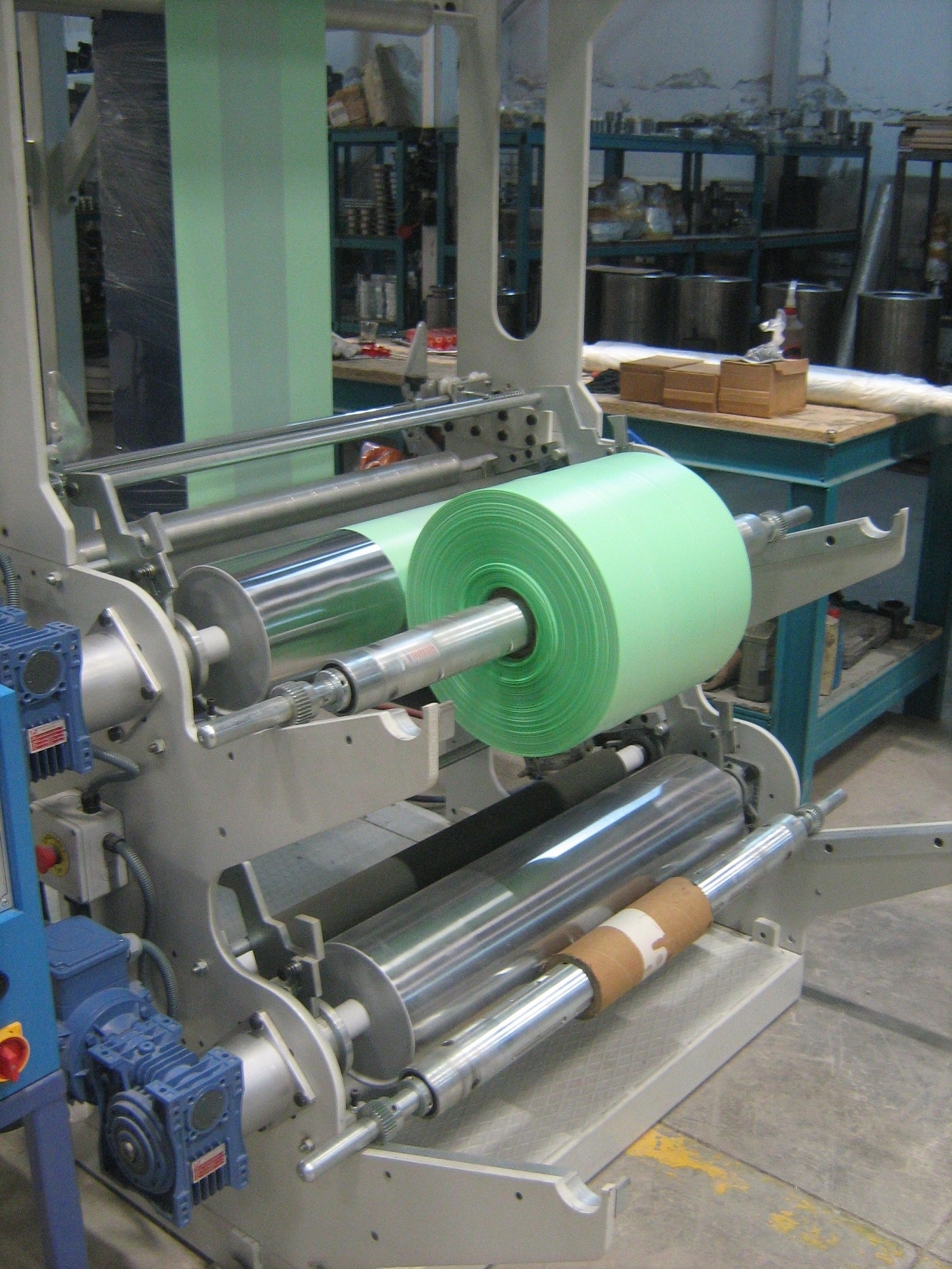

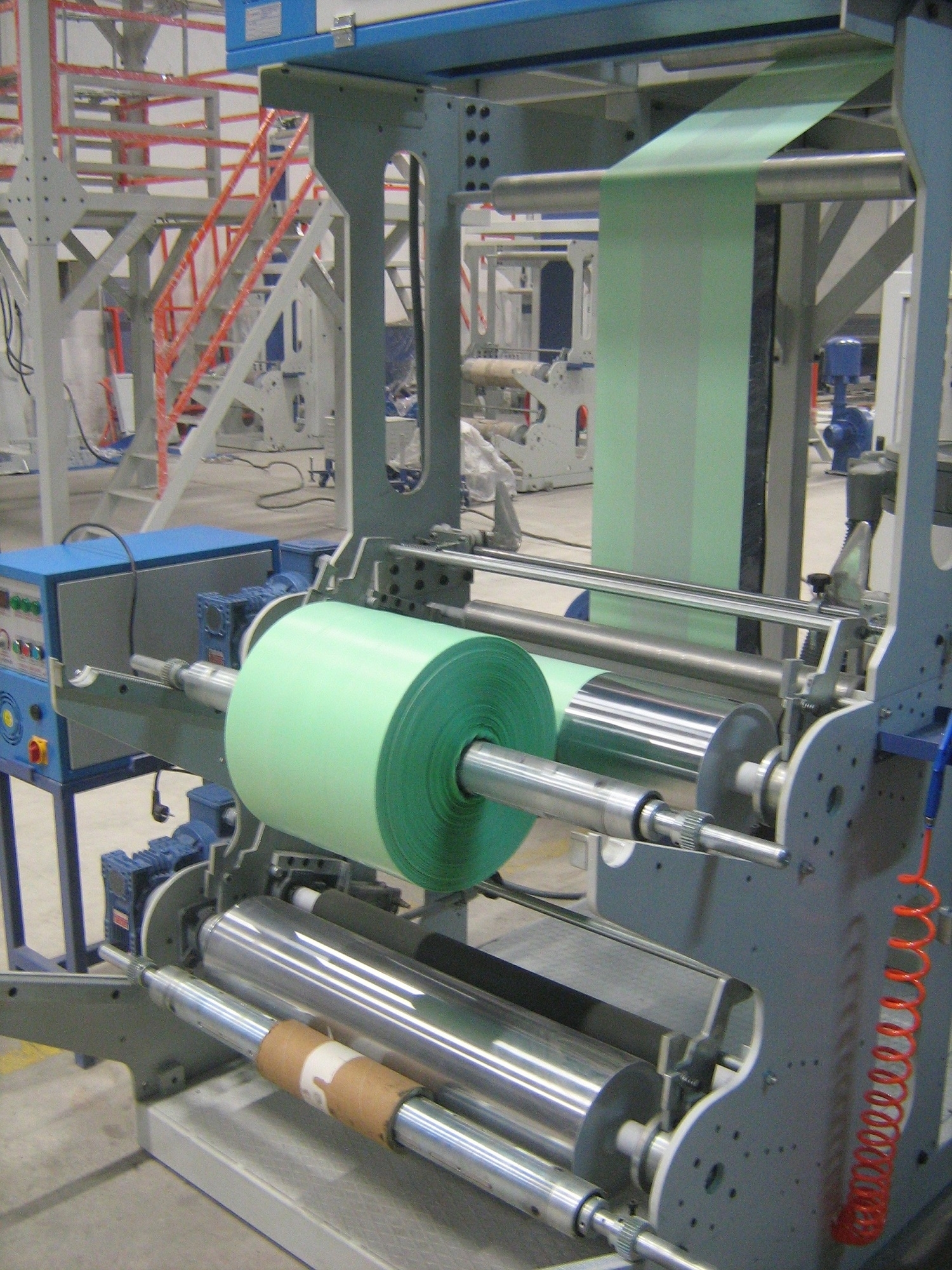

Winder (Optional): Automatic or Manual
Machine Height: 6 m (Adjustable)
Tower Type: Vertical or Horizontal Rotating
