Product Description:
The MONO LDPE 120 W-1600 Heavy Duty Film Machine is an advanced extrusion line engineered for high-capacity LDPE film production.
Designed for industrial-scale manufacturing, it supports film widths from 2300 mm to 2700 mm and thicknesses between 0.020 mm and 0.300 mm, delivering exceptional quality and consistency.
With a powerful Ø120 mm screw, the system reaches an impressive output of up to 600 kg/h, making it ideal for heavy-duty packaging applications.
It features both fixed and rotating die options, an adjustable height up to 12 m, and a flexible tower configuration (fixed or rotating).

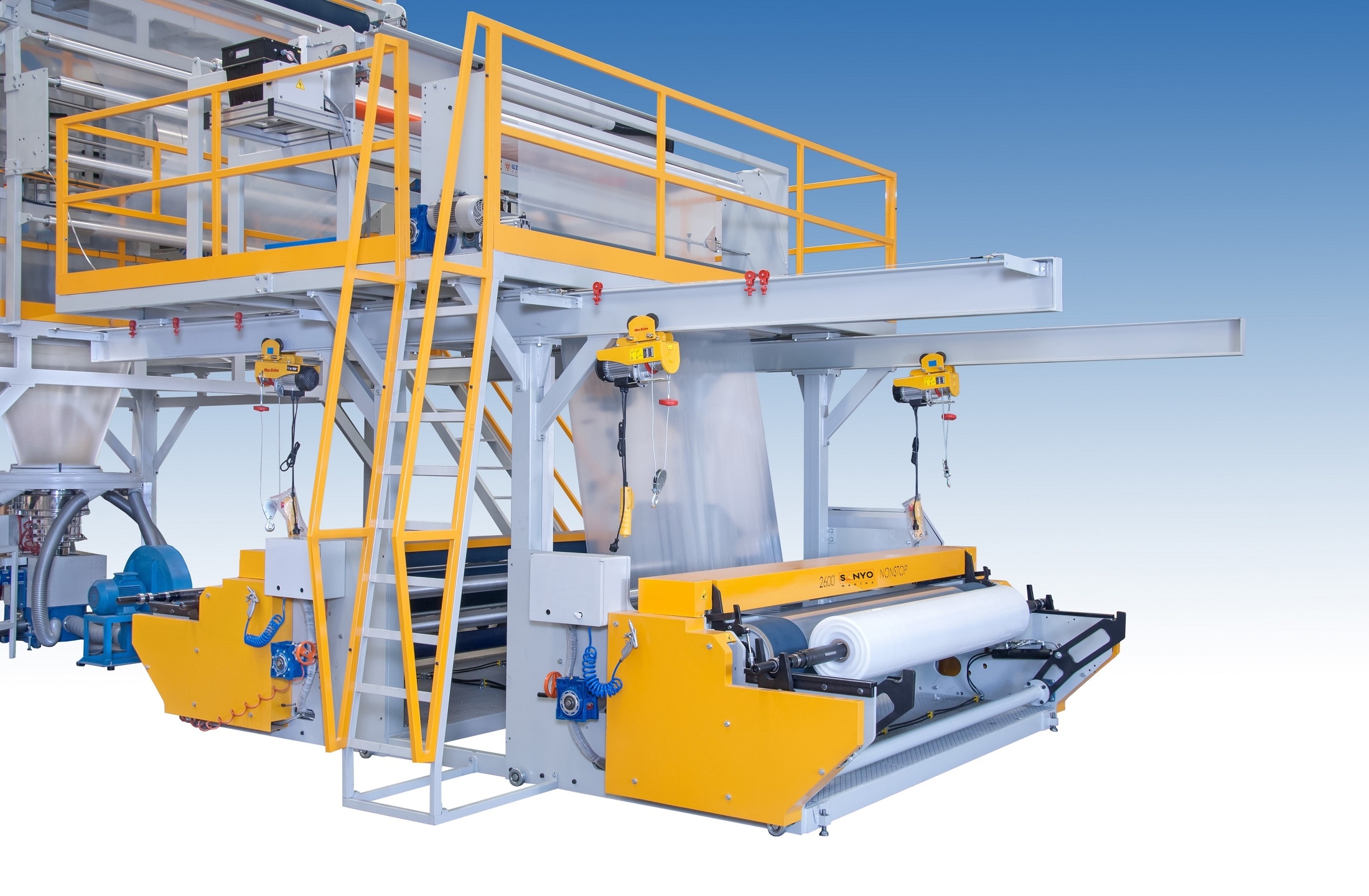

The machine also includes optional automatic or manual winding systems for maximum operational efficiency.
Technical Specifications:
Film Width: 2300–2700 mm
Film Thickness: LDPE 0.020–0.300 mm
Production Capacity: 450–600 kg/h
Screw Diameter: Ø120 mm
Die Type: Fixed or Rotating
Winder (Optional): Automatic or Manual
Machine Height: 12 m (Adjustable)
Tower Type: Fixed or Rotating
