Stand Alone Hole Punch Machine
Send us your application details. Our engineering and sales team will contact you regarding Stand Alone Hole Punch Machine.
Technical Overview

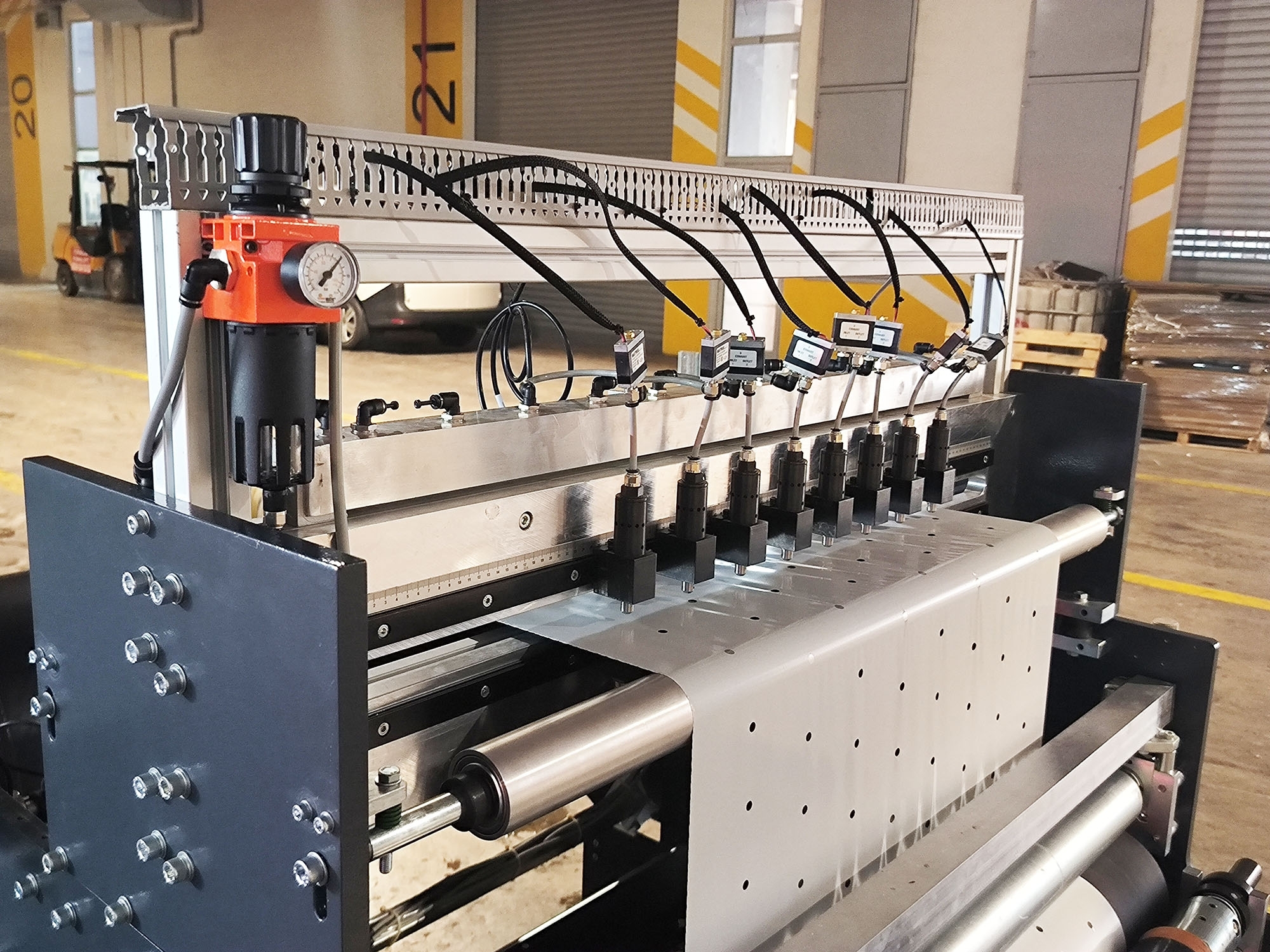

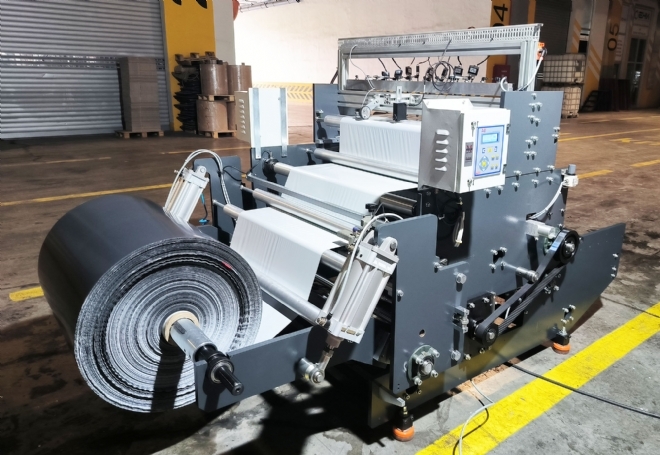

The stand-alone hole punching machine is designed for high-speed, precise hole punching on moving film and web materials. Equipped with advanced PLC control and touchscreen operation, it ensures full synchronization between unwinding, punching, and rewinding processes.
Maximum Material Width: 1000 mm
Hole Diameter: 8 mm
Number of Holes: 8
Punching Speed: 20 holes/sec
Film Line Speed: 120 m/min (depending on punching interval)
Drive System: High-speed pneumatic cylinder
Control System: PLC with touchscreen interface
Hole Spacing: Adjustable via touchscreen
Valve Timing: Adjustable open/close times
Vacuum System: Removes film particles to collection tank

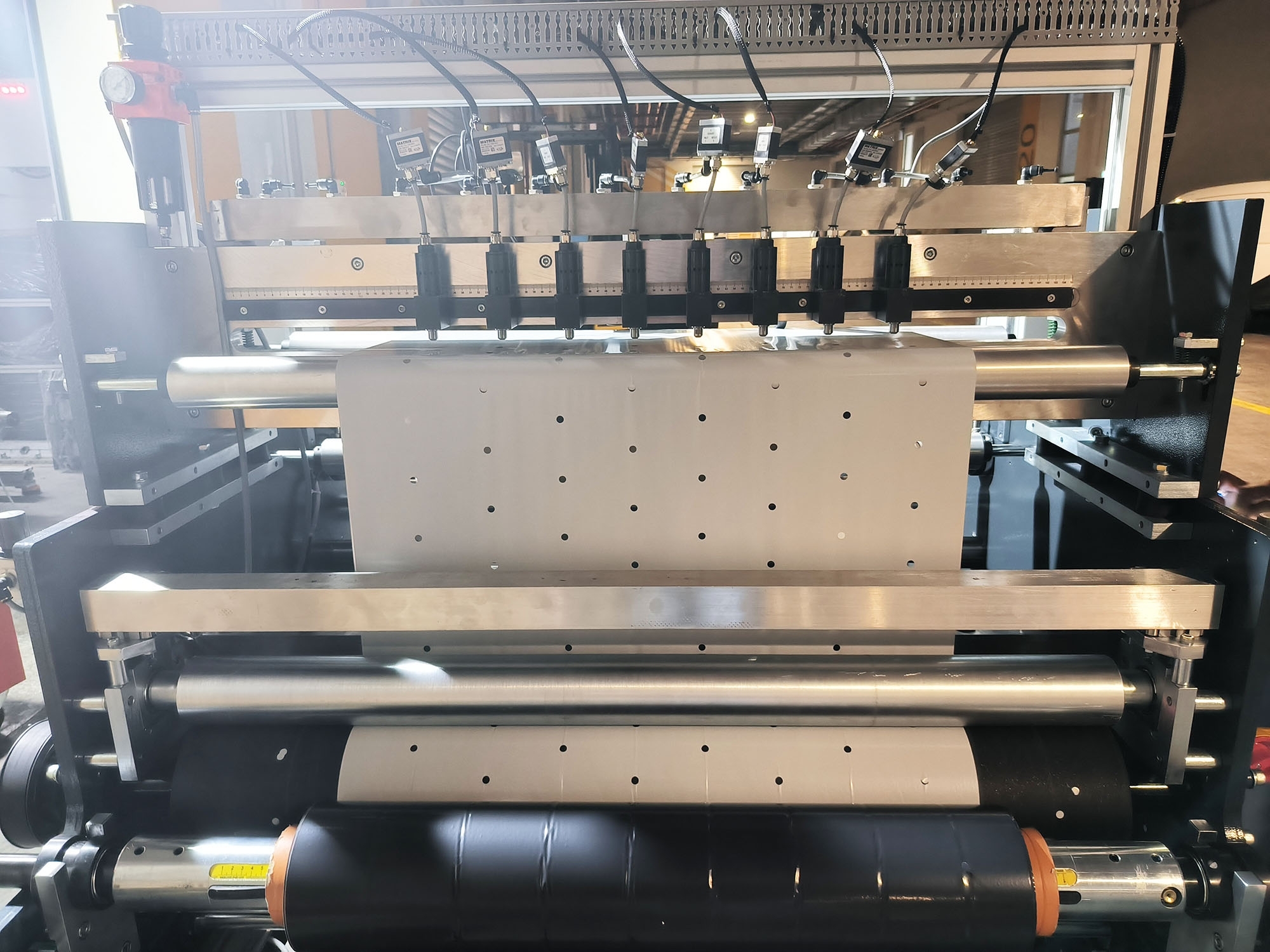

Independent Punch Activation: Each die can be enabled/disabled individually
Color Sensor: Detects printed film marks

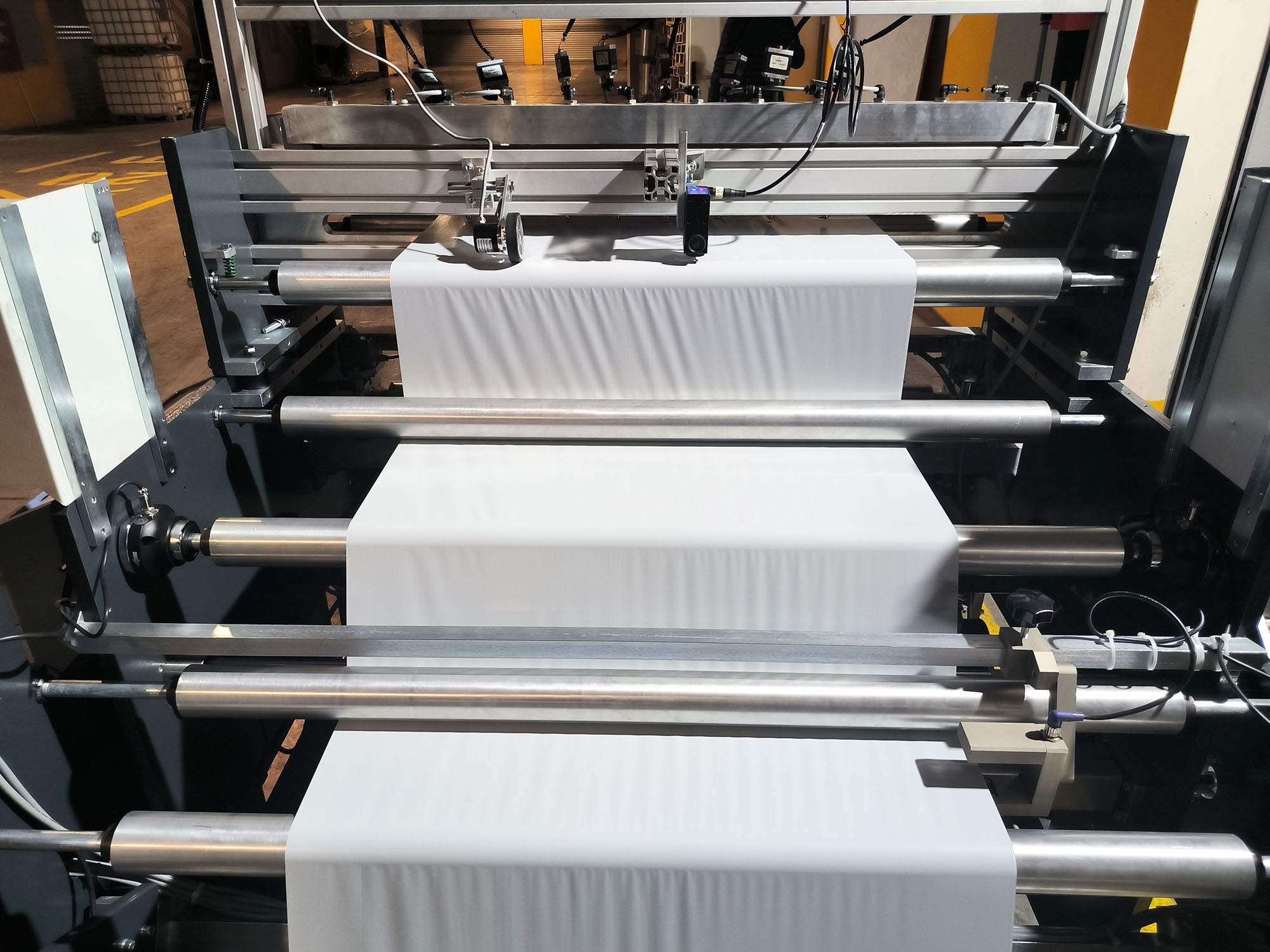

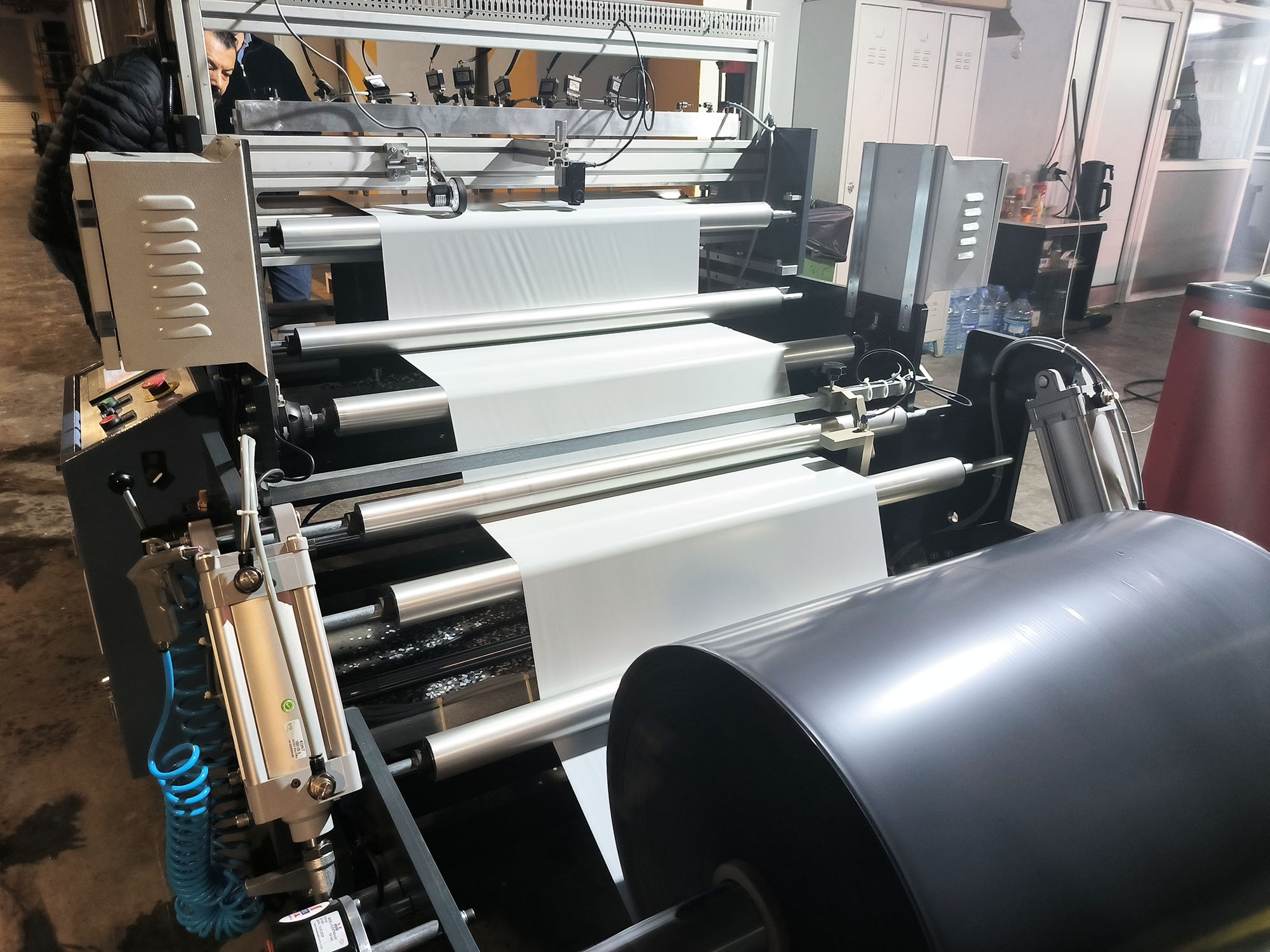

Unwinding Section:
Precision film tension control with AC motor and speed regulation
Automatic edge control system
3” air shaft for unwinding
Rewinding Section:
3” air shaft for rewinding
Optional use for foil rewinding or slitting & rewinding
