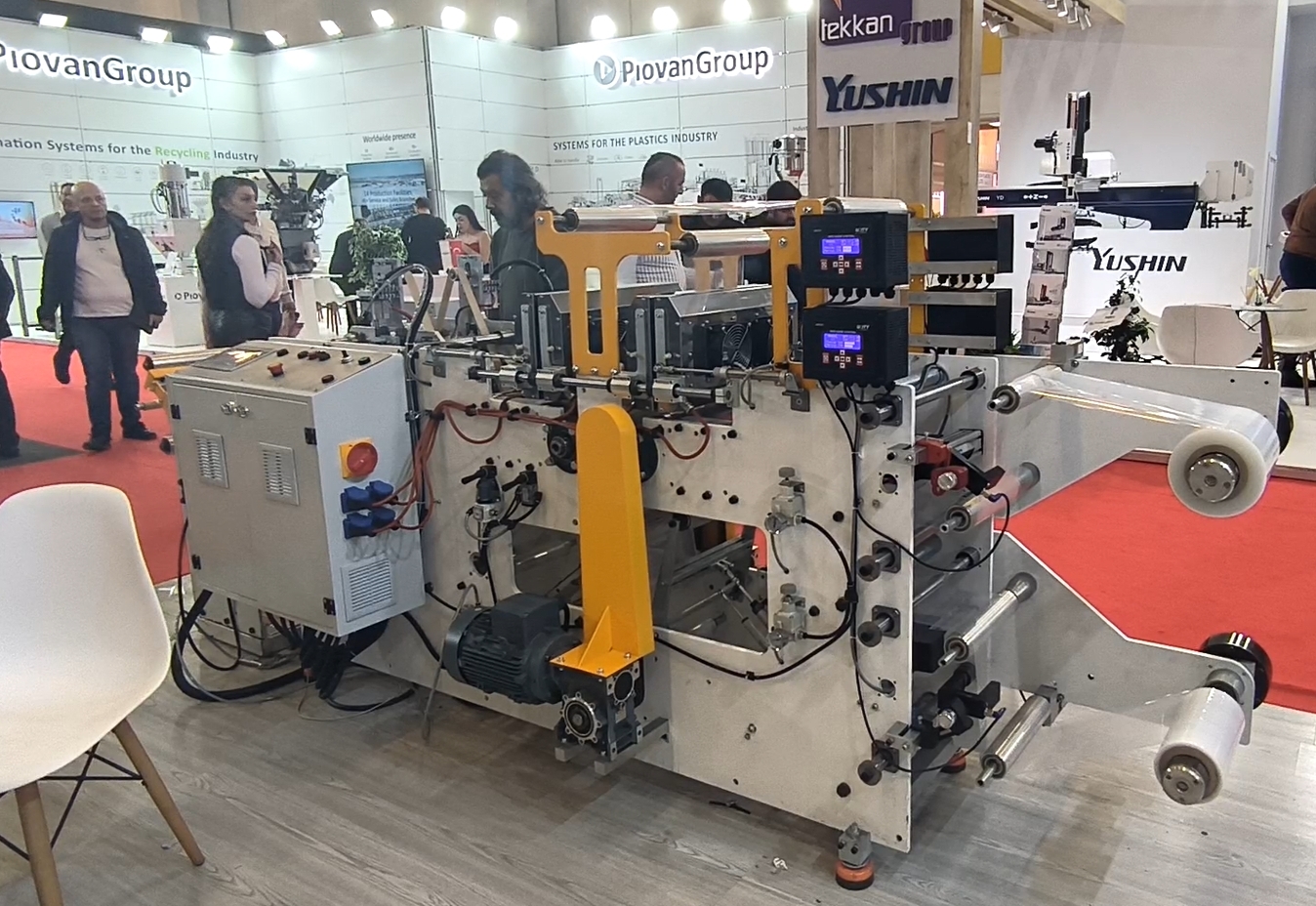

Embossing and Sealing Machine
Send us your application details. Our engineering and sales team will contact you regarding Embossing and Sealing Machine.
EMBOSSING MACHINE
1. Embossing Unit
Embossing Roller Width: 500 mm
Embossing Film Width: 450 mm
Embossing Rollers: 2 units
Rubber Push Rollers: 2 units

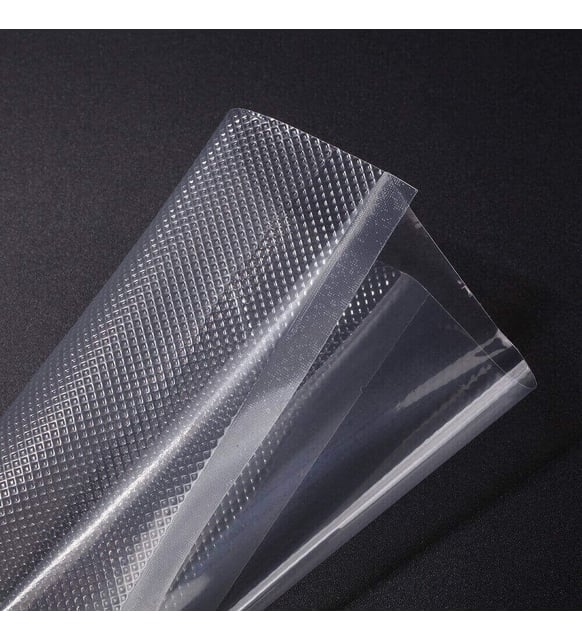

Pattern Type: Horizontal striped (other patterns optional)
Positioning: Hydraulic-controlled embossing roller adjustment
Drive System: 2x speed-controlled AC motors
Roller Cooling: Water-cooled embossing pattern rollers
Hot Air Tunnel: Pneumatic system with resistance applied near the film surface

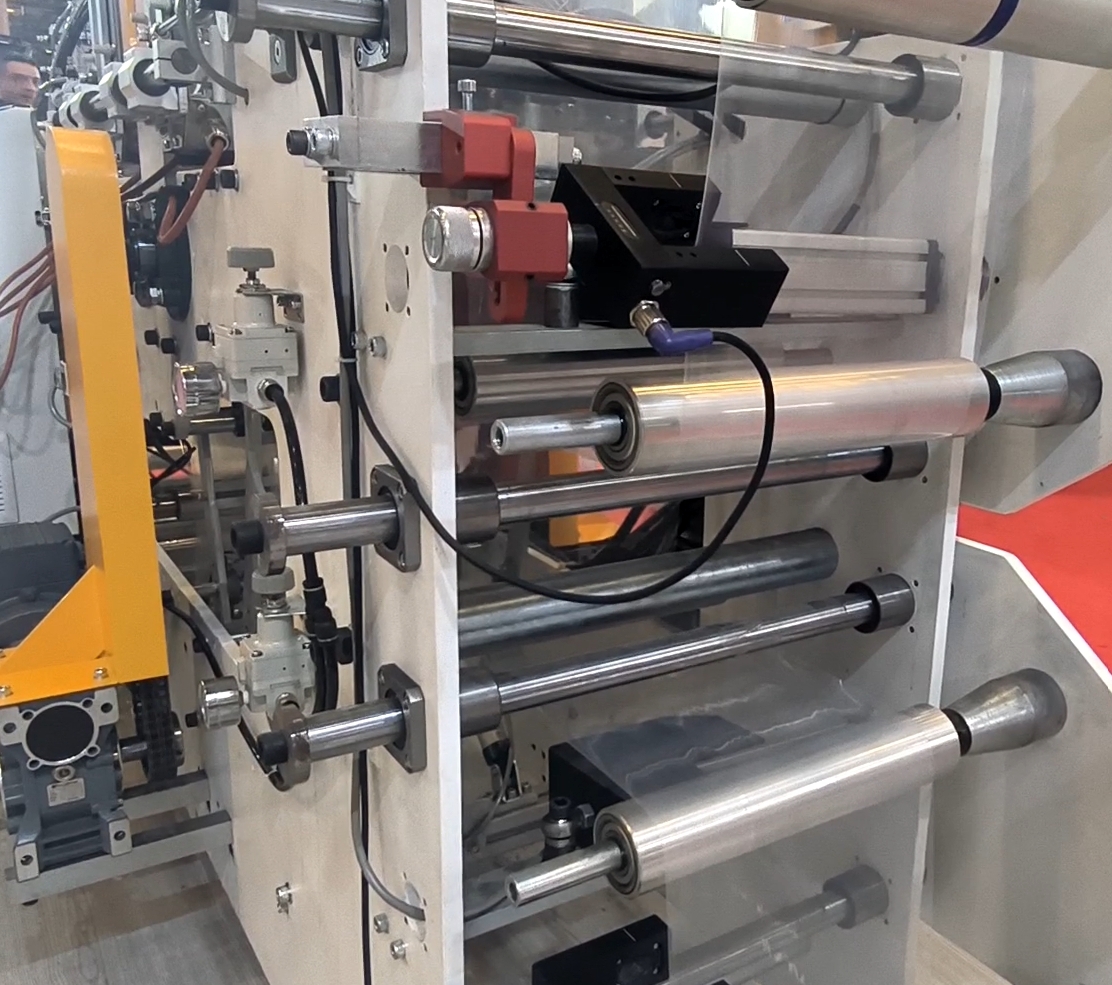

2. Film Guidance and Edge Control Unit
Edge Control System: 2 units
Balanced Roller System: Pneumatic pressure-adjusted rollers for dual film control
Edge Waste Removal: 2 integrated air-assisted systems

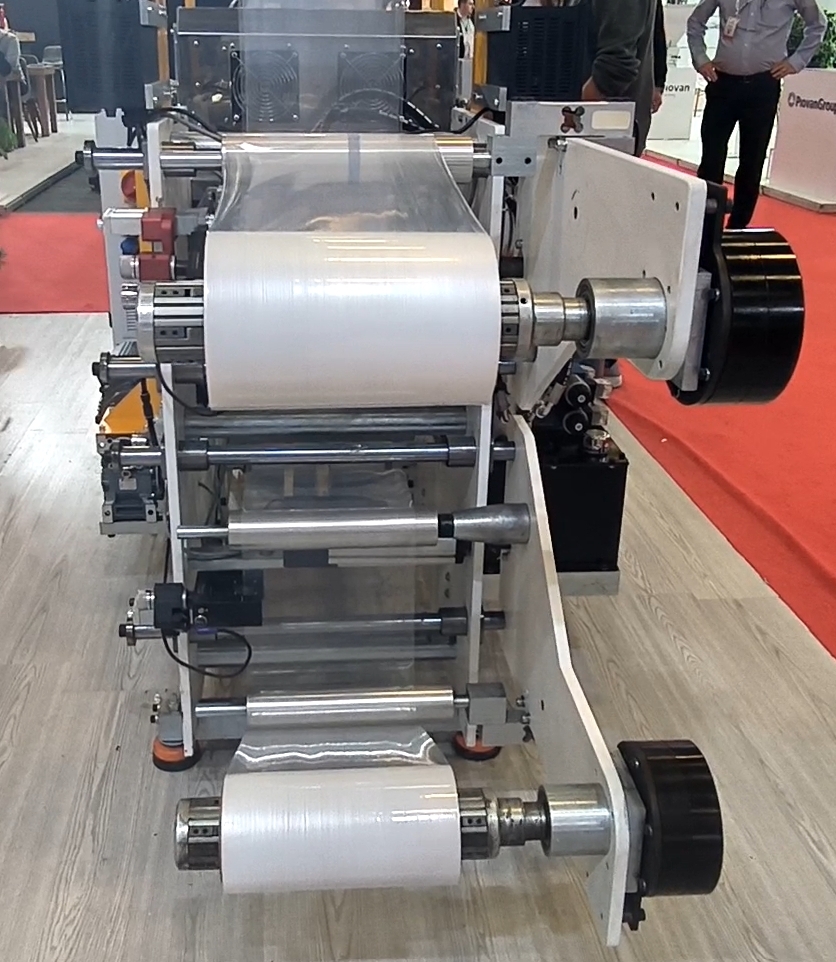

3. Winding Unit
Bobbin Loading: 2 air shaft units
Tension Control: Magnetic torque brake with load cell feedback (2 units)
Automatic Film Transfer: Integrated cutter and shaft-switching mechanism
Winding System: Dual-shaft configuration at line output
4. Jaw (Sealing) Unit
Silicone Roller: Pneumatically driven
Sealing Jaw: Heat-controlled with forward-backward movement (1 unit)
5. Control Unit
System Type: PLC-controlled
Interface: Touchscreen for managing temperature, speed, and film length
Line Speed: Up to 15 m/min (subject to film thickness and material type)
