Corona Treatment
Send us your application details. Our engineering and sales team will contact you regarding Corona Treatment Unit UD1600-2.
Product Description:
The Corona Treatment UD1600-2 is a high-performance insulating material surface treatment system designed to improve adhesion and printability on plastic films and polymer substrates.
It features adjustable electrode control, automatic stop, and dual-size treatment capability, ensuring precision and flexibility for modern extrusion and printing lines.
The unit operates at 10–20 kHz and provides 4 kW treatment power, with current protection and alarm systems for operator safety.
Equipped with a vacuum fan, film width and thickness adjustment, and both manual and automatic modes, it ensures optimal and efficient corona discharge treatment.
Technical Highlights:
Material Type: Insulating materials
Electrode: Adjustable electrostatic control
Film Thickness & Width: Fully adjustable
Treatment Widths: Dual-size operation

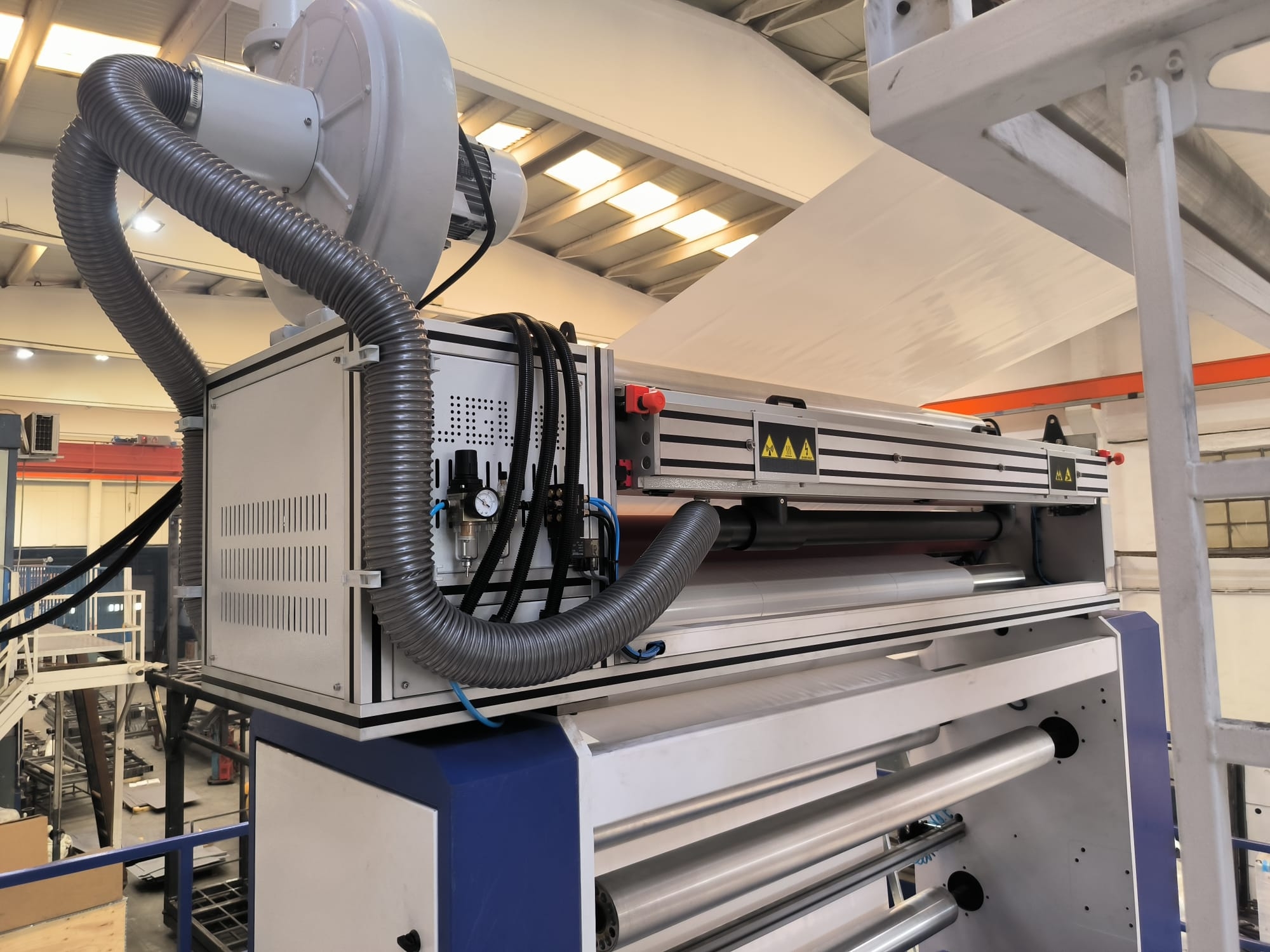

Vacuum Fan: Integrated for air management
Stop Function: Automatic when film stops
Frequency: 10–20 kHz
Voltage: 220V
Power: 4 kW
Operation Mode: Manual / Automatic
Roller Diameter: Ø70 mm
Silicon Color: Red
Cables: 3m entrance, 5m generator
Color: RAL7035 & Aluminum Eloxal
