Corona Treatment
Send us your application details. Our engineering and sales team will contact you regarding Corona Treatment Unit UD1600.
Product Description:

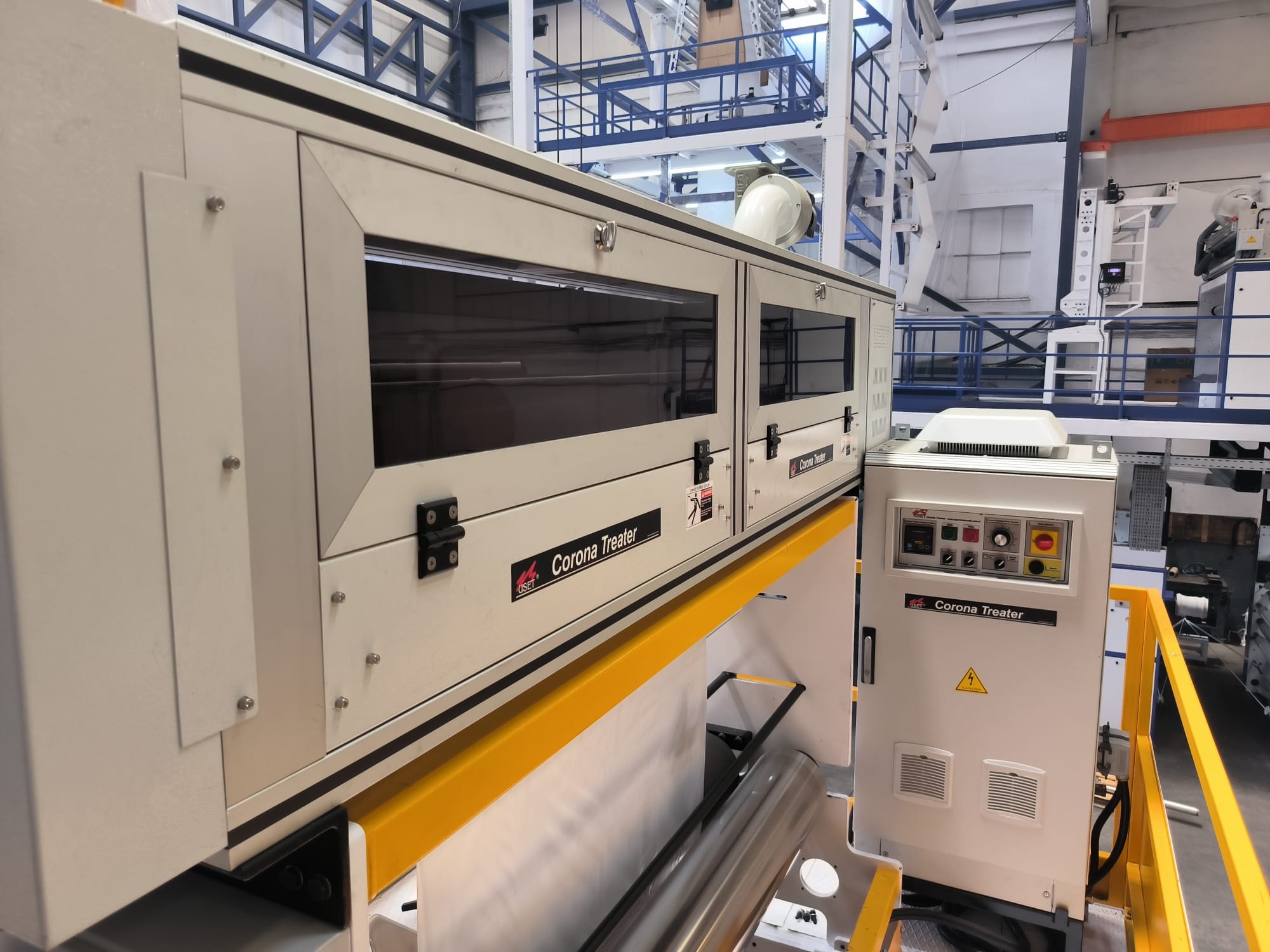

The Corona Treatment UD1600 is a high-efficiency surface treatment system engineered for insulating and plastic film materials. It enhances adhesion, coating, and printability by improving the surface tension of films and polymer substrates.

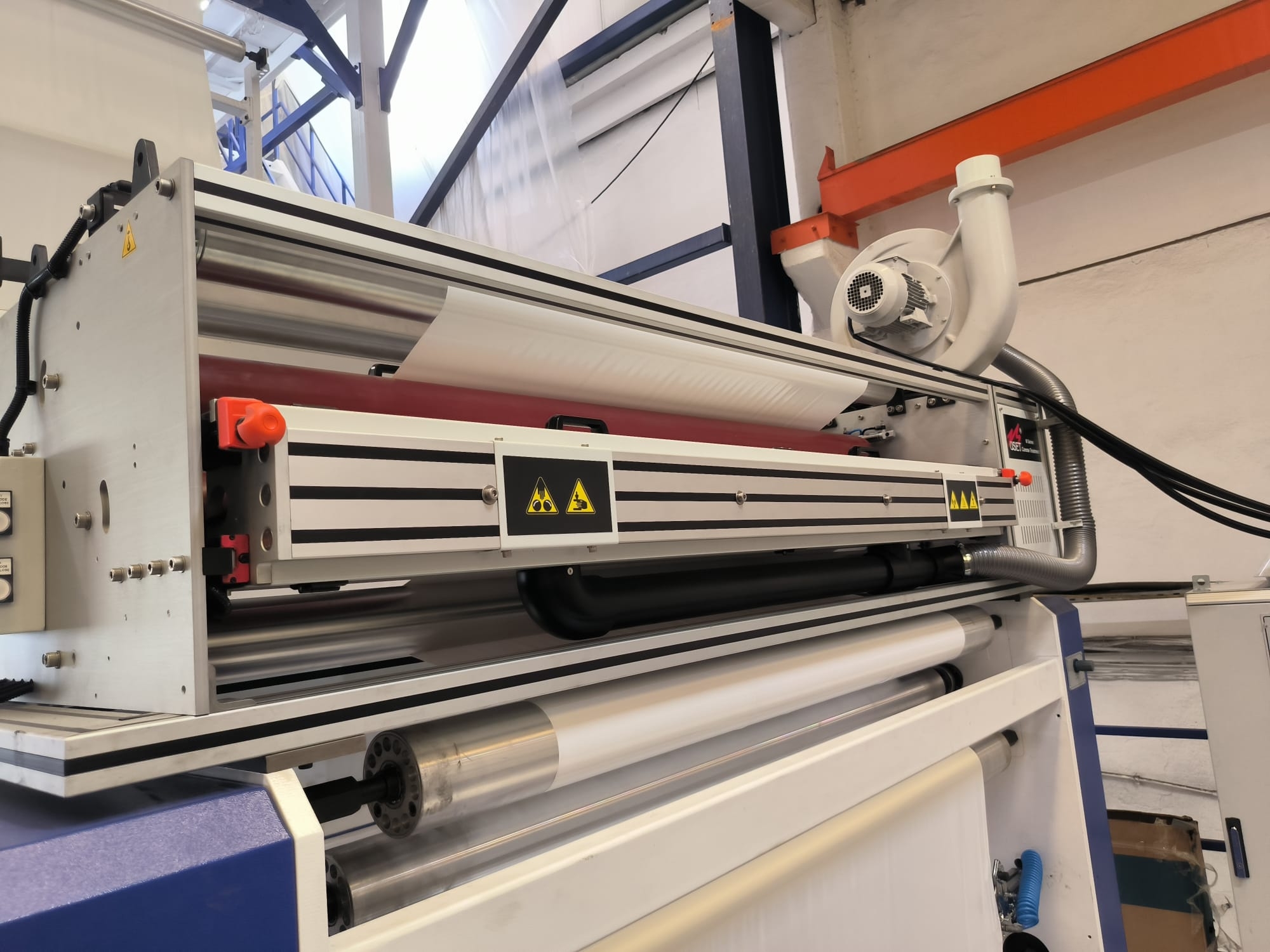

Equipped with an adjustable electrode system, vacuum fan, and automatic stop function, the UD1600 ensures precision control and operational safety.
It operates at 10–20 kHz with a treatment power of 6 kW, offering both manual and automatic modes for flexible use.
The system includes current protection, alarm notification, and dual-size film treatment capability, making it ideal for modern extrusion and printing lines.
Technical Highlights:
Material: Insulating materials
Adjustable Electrode
Film Width & Thickness: Adjustable
Dual-size treatment capability

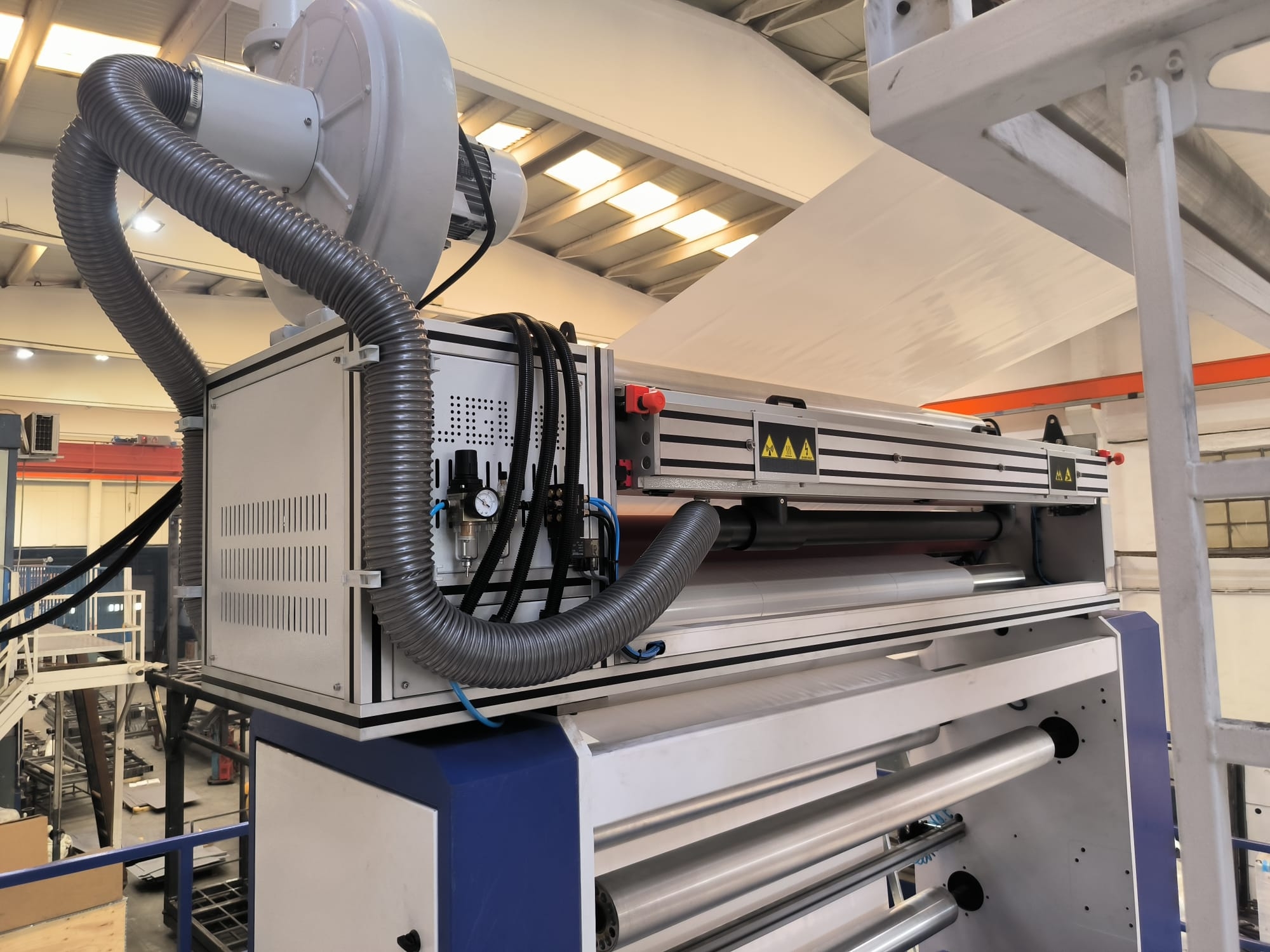

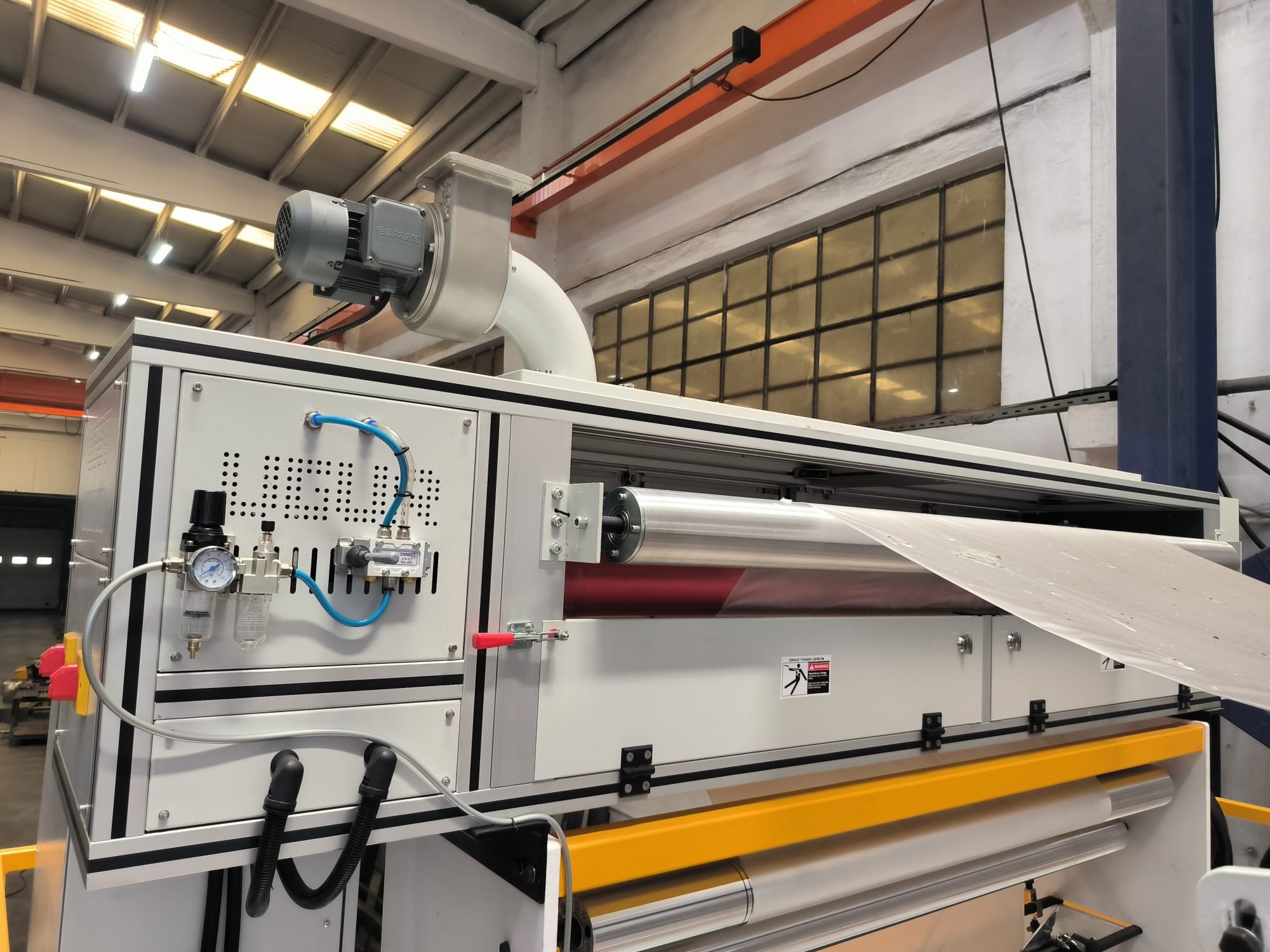

Vacuum fan system
Automatic stop when film stops
Frequency: 10–20 kHz
Voltage: 380V
Power: 6 kW
Roller Diameter: Ø100 mm
Silicon Color: Red
Cables: 3 m entrance / 5 m generator
Color: RAL7035 & Aluminum Eloxal
