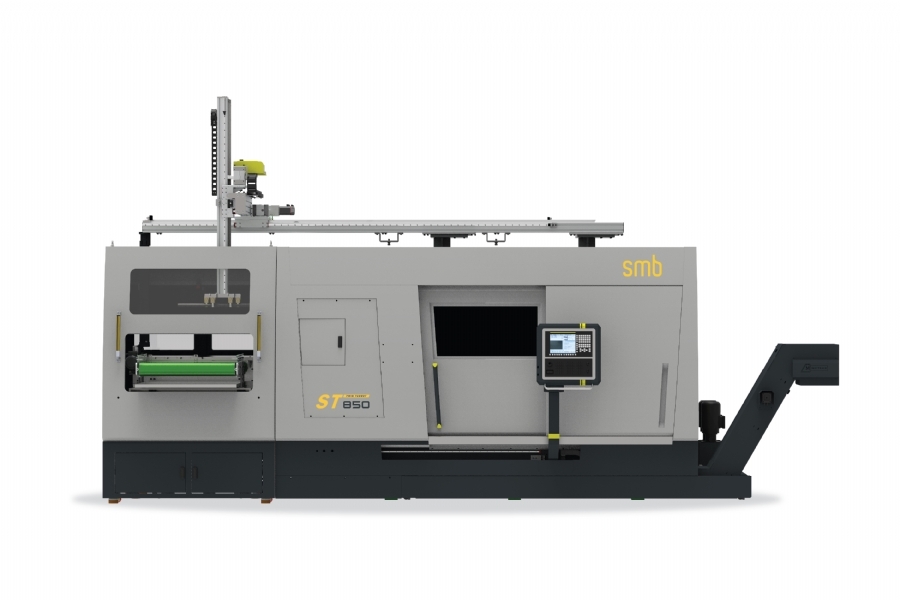

Send us your application details. Our engineering and sales team will contact you regarding TT 850C Twin Turret CNC Lathe with C Axis.
Design
High-efficiency monoblock machine bed design
Servo-controlled programmable steady rest
Servo-controlled programmable tailstock
BMT twin turret with live tool drive
Servo-controlled turrets
12 kW spindle motor power
Automation System

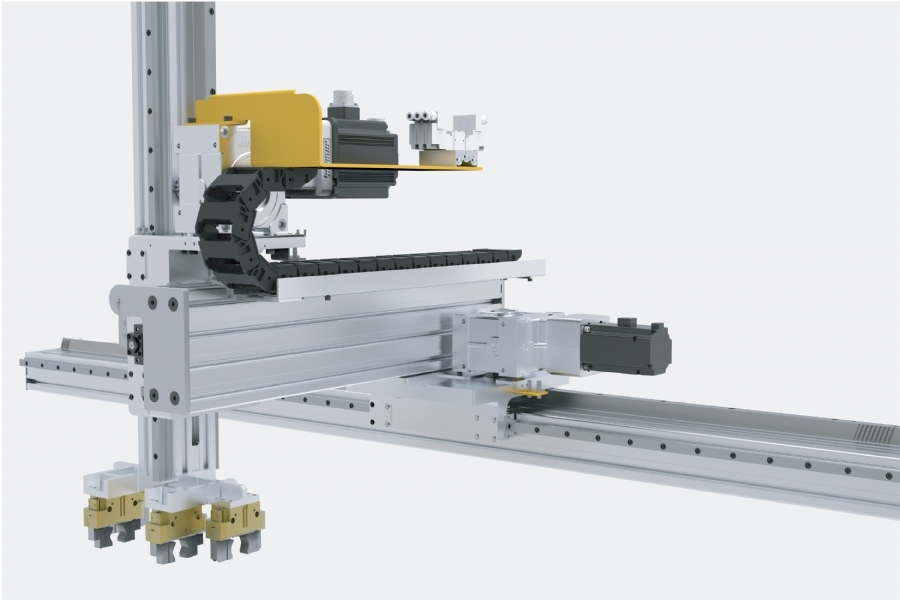

3-axis Cartesian robot movement
Cartesian robot system with part feeding up to 850 mm length
Compact design fully integrated with the machine
Ladder-type or steel-tracked loading and unloading system depending on part type
Processing Capacity

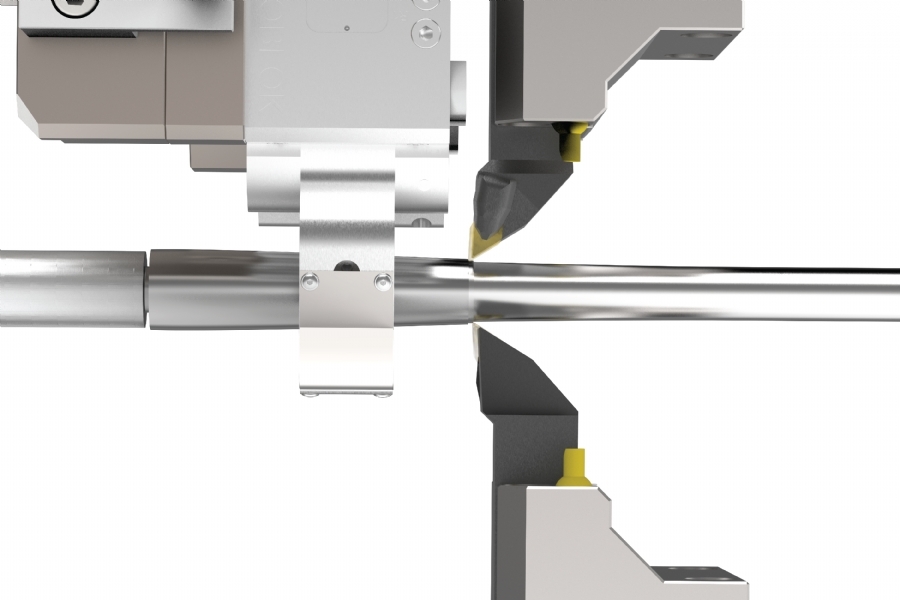

Simultaneous turning or milling capability
Tool monitoring system
Programmable tailstock group
Programmable steady rest
1.5 kW live tool motor power
8” spindle option
TECHNICAL SPECIFICATIONS – TT 850C
Capacity
Swing Diameter: Ø500 mm
Max. Turning Diameter: Ø200 mm
Max. Turning Length: 1000 mm
Bar Capacity: Ø52 mm
Spindle
Chuck Size: 8 inch (incl. subspindle)
Max. Spindle Speed: 4500 rpm
Spindle Nose: A2-6
Spindle Bore: Ø65 mm
Spindle Motor Power: 12 kW (incl. subspindle)
Turret
Turret Quantity: 2
Tool Stations: 12 × 2
Positioning Time: 0.15 sec
Tool Disc Type: BMT-55
Driven Tool Power / Torque: 14 kW / Nm
Max. Driven Tool Speed: 10000 rpm
Machine Dimensions
Machine Area (L×W×H): 4850 × 2610 × 2330 mm
Loader Area (L×W×H): 1480 × 1470 × 4200 mm
Machine Weight: 10000 kg
