Design
Monoblock bed structure for high rigidity and efficiency
Electromechanical single turret system
Stroke-adjustable MK5 tailstock
12 kW spindle motor power
8” spindle capacity
Automation System
3-axis Cartesian movement

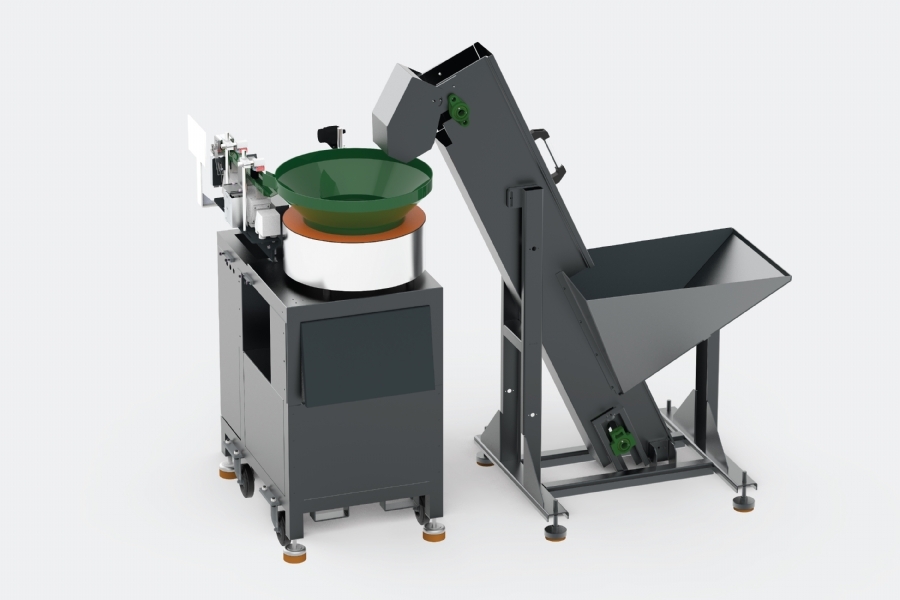

Product-specific loading and unloading system
Automation system configurable for various part types
All axes equipped with SMB servo drivers and servo motors
Compact automation design fully integrated with the machine
Processing Capacity

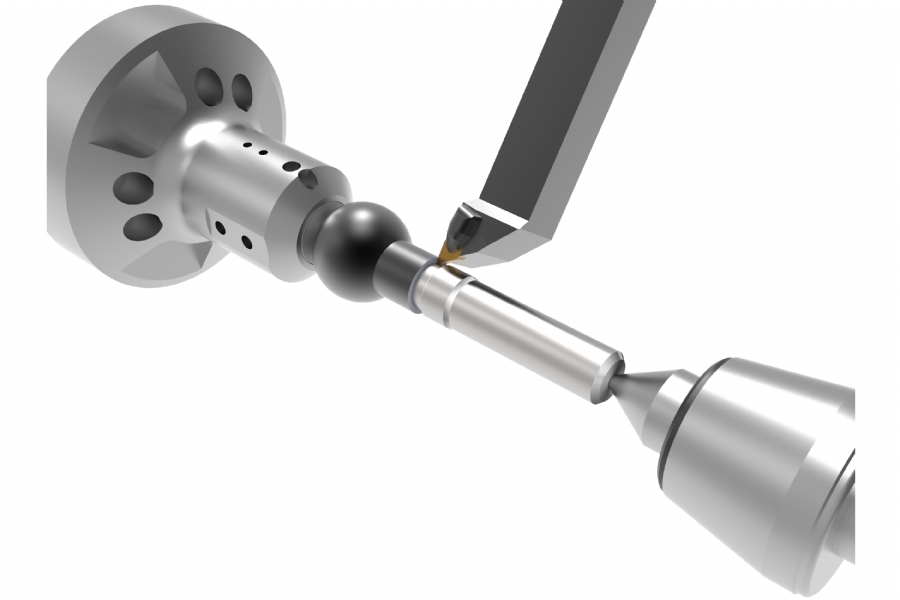

Simultaneous turning or milling capability
High-speed processing from bar feeder
Tool monitoring system
Short stroke tailstock option – 10 mm
TECHNICAL SPECIFICATIONS – ST 260
Capacity
Swing Diameter: Ø500 mm
Max. Turning Diameter: Ø200 mm
Max. Turning Length: 200 mm
Bar Capacity: Ø52 mm
Spindle
Chuck Size: 8 inch
Max. Spindle Speed: 4500 rpm
Spindle Nose: A2-6
Spindle Bore: Ø65 mm
Spindle Motor Power: 12 kW
Turret
Turret Quantity: 1
Tool Stations: 8
Indexing Time: 0.15 sec
Tool Disc Type: Slotted
Driven Tool Power / Torque: –
Max. Driven Tool Speed: –
Machine Dimensions
Machine Area (L×W×H): 3510 × 2300 × 2050 mm
Loader Area (L×W×H): 1060 × 2060 × 3400 mm
Machine Weight: 6500 kg
