Send us your application details. Our engineering and sales team will contact you regarding TT 260 Twin Turret CNC Lathe.

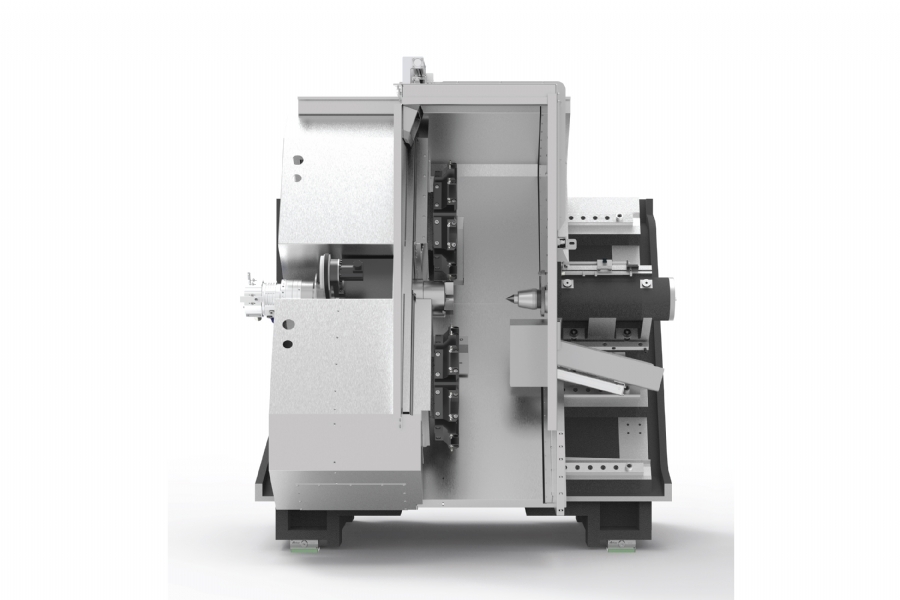

Design
Monoblock bed frame design for vibration absorption and high machining accuracy
Equipped with twin turret system
Heavy-duty SRG 45 linear guideways
Electromechanical turrets
Stroke-adjustable tailstock
12 kW spindle motor power

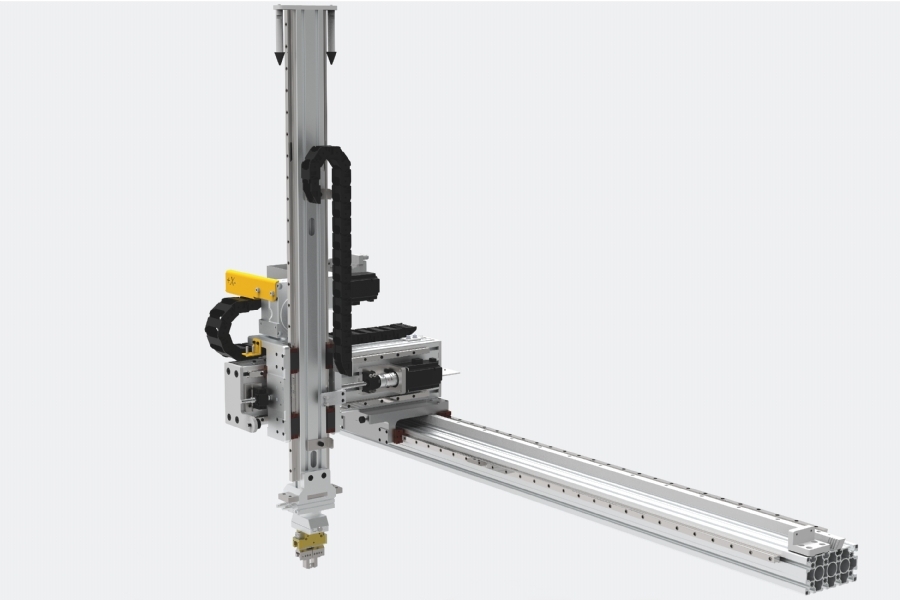

Automation System
Product-specific loading and unloading system
Automation system configurable for various part types
3-axis servo-controlled movement
All axes equipped with SMB servo drivers and servo motors
Compact automation design fully integrated with the machine
Processing Capacity

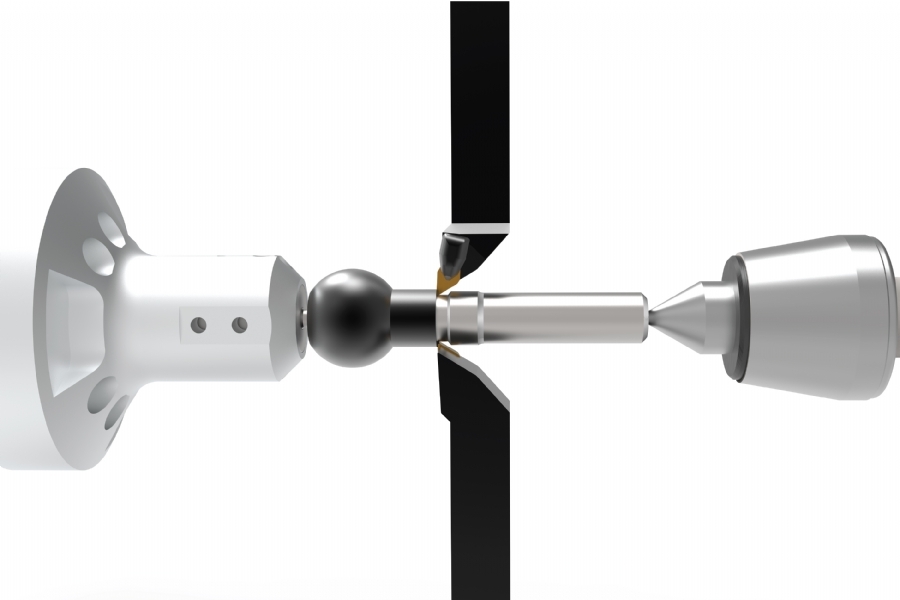

Simultaneous turning with twin turrets
High-speed processing from bar feeder (optional)
Tool monitoring system
Special chuck solutions for different workpieces
TECHNICAL SPECIFICATIONS – TT 260
Capacity
Swing Diameter: Ø500 mm
Max. Turning Diameter: Ø200 mm
Max. Turning Length: 200 mm
Bar Capacity: Ø52 mm
Spindle
Chuck Size: 6 inch
Max. Spindle Speed: 4500 rpm
Spindle Nose: A2-5
Spindle Bore: Ø52 mm
Spindle Motor Power: 12 kW
Turret
Turret Quantity: 2
Tool Stations: 8 × 2
Positioning Time: 0.3 sec
Tool Disc Type: Slotted
Driven Tool Power / Torque: –
Max. Driven Tool Speed: –
Machine Dimensions
Machine Area (L×W×H): 3510 × 2300 × 2050 mm
Loader Area (L×W×H): 1060 × 2060 × 3400 mm
Machine Weight: 7500 kg
