Send us your application details. Our engineering and sales team will contact you regarding TT 550C Twin Turret CNC Lathe with C Axis.
Design

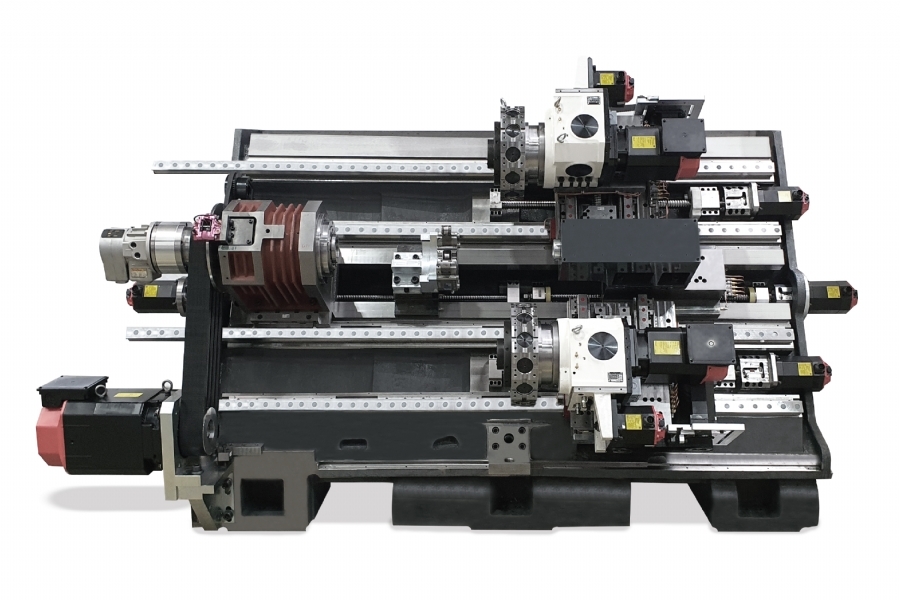

High-efficiency monoblock bed frame design
Servo-controlled programmable steady rest
Servo-controlled programmable tailstock

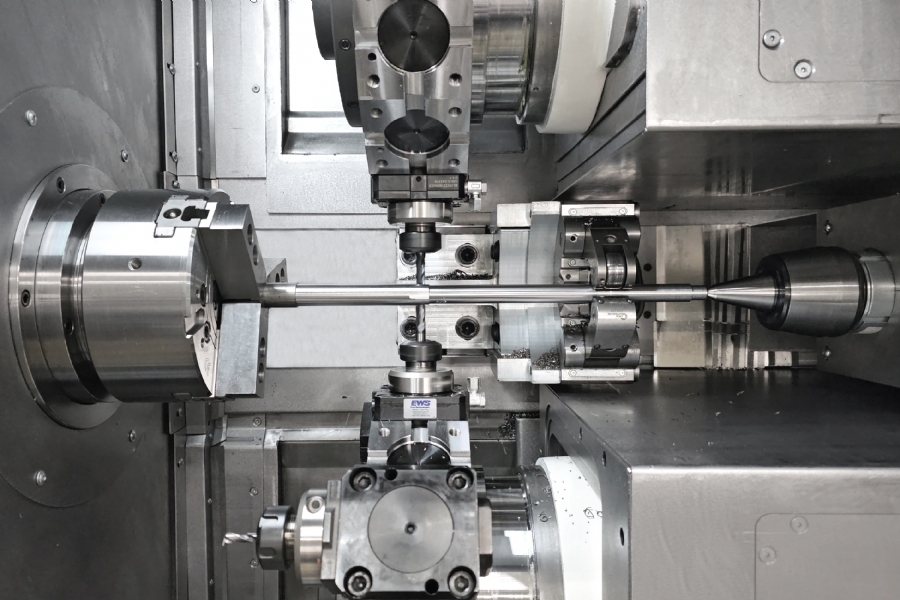

BMT double turret with live tool drive
Servo-controlled turrets
11 kW and 15 kW spindle motor options
Automation System

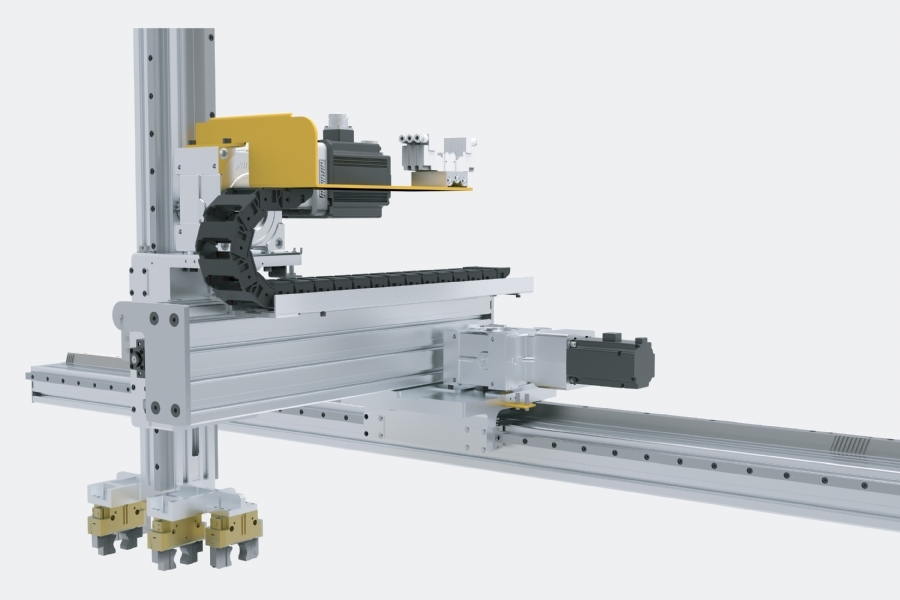

Integrated Cartesian robot and part catcher
3-axis Cartesian robot movement
Automation system configurable for various part types
All axes driven by servo motors
Compact automation design fully integrated with the machine
Processing Capacity
Simultaneous turning or milling capability
High-speed processing from bar feeder
Tool monitoring system
TECHNICAL SPECIFICATIONS – TT 550 C
Capacity
Swing Diameter: Ø500 mm
Max. Turning Diameter: Ø200 mm
Max. Turning Length: 500 mm
Bar Capacity: Ø52 mm
Spindle
Chuck Size: 8 inch
Max. Spindle Speed: 4500 rpm
Spindle Nose: A2-6
Spindle Bore: Ø65 mm
Spindle Motor Power: 12 kW
Turret
Turret Quantity: 2
Tool Stations: 12 × 2
Positioning Time: 0.15 sec
Tool Disc Type: BMT-55
Driven Tool Power / Torque: 2.2 kW / Nm
Max. Driven Tool Speed: 10000 rpm
Machine Dimensions
Machine Area (L×W×H): 4700 × 2520 × 2300 mm
Loader Area (L×W×H): 1200 × 2400 × 4320 mm
Machine Weight: 8000 kg
