Send us your application details. Our engineering and sales team will contact you regarding TT 260C Twin Turret CNC Lathe with C Axis.
Design

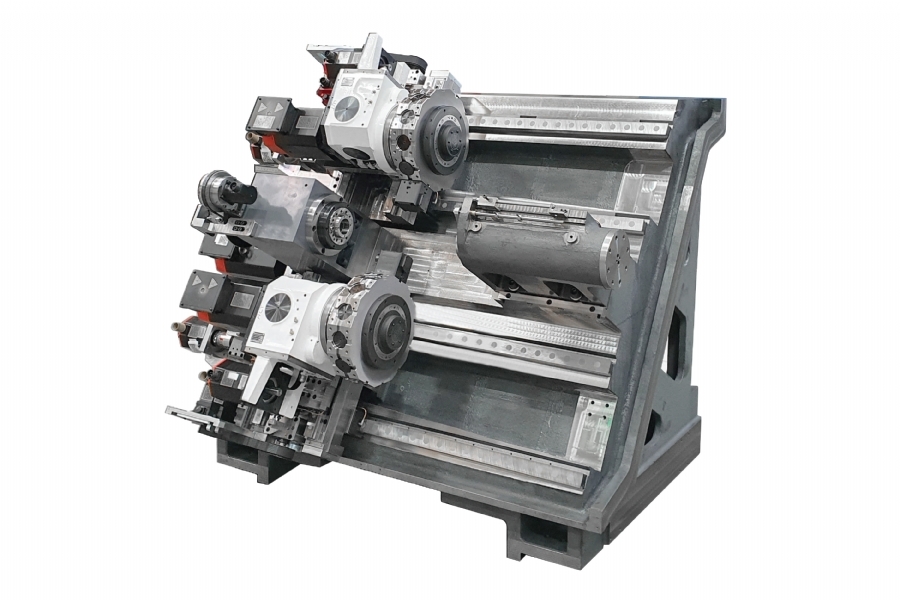

Monoblock bed frame design for vibration absorption and high machining accuracy

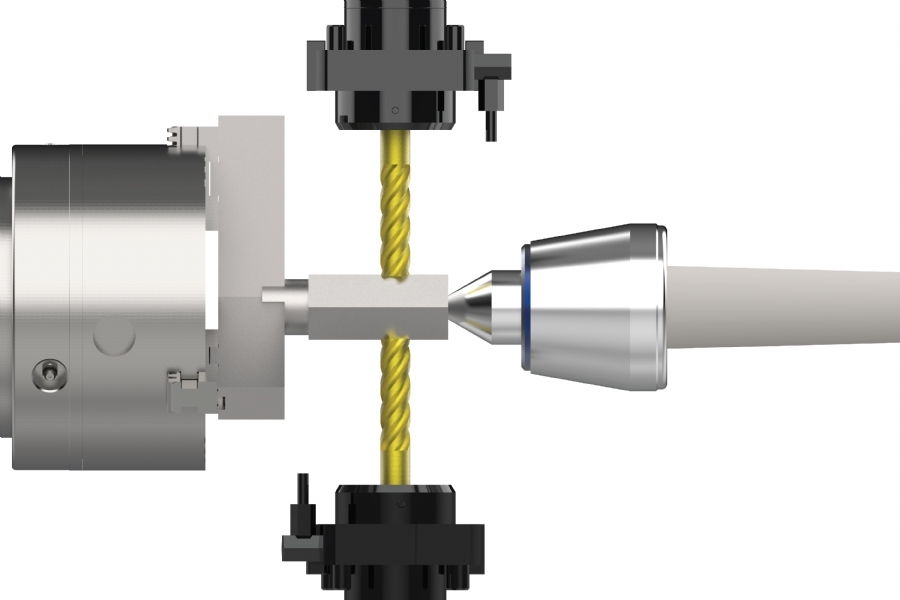

Twin turret configuration
BMT double turret with live tool drive
Servo-controlled turrets
Stroke-adjustable tailstock
12 kW spindle motor power
Automation System

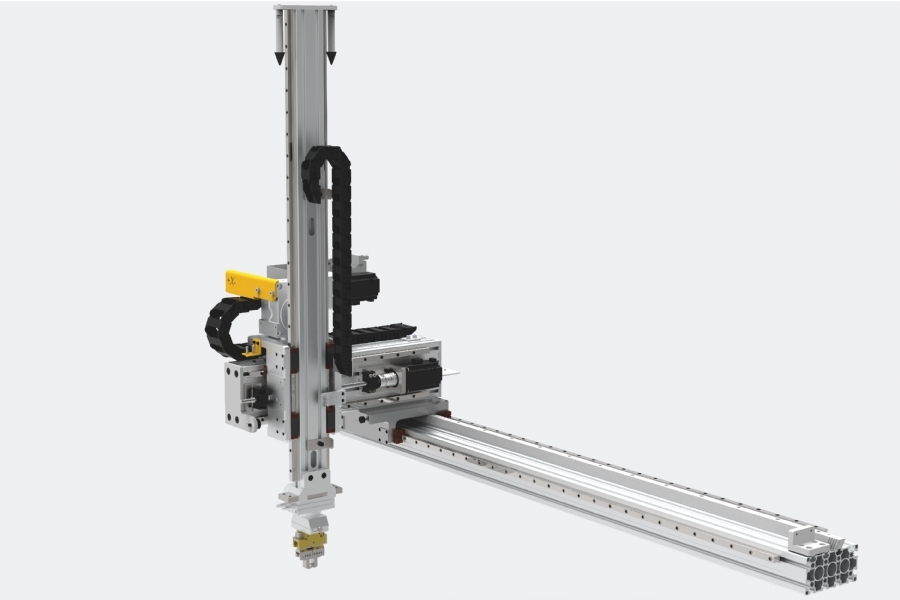

3-axis Cartesian movement
Product-specific loading and unloading system
Automation system configurable for various part types
All axes equipped with SMB servo drivers and servo motors
Compact automation design fully integrated with the machine
Processing Capacity
Simultaneous turning or milling capability
High-speed processing from bar feeder (optional)
Tool monitoring system
Short stroke tailstock option – 10 mm
TECHNICAL SPECIFICATIONS – TT 260 C
Capacity
Swing Diameter: Ø500 mm
Max. Turning Diameter: Ø200 mm
Max. Turning Length: 200 mm
Bar Capacity: Ø52 mm
Spindle
Chuck Size: 6 inch
Max. Spindle Speed: 4500 rpm
Spindle Nose: A2-5
Spindle Bore: Ø52 mm
Spindle Motor Power: 12 kW
Turret
Turret Quantity: 2
Tool Stations: 12 × 2
Positioning Time: 0.15 sec
Tool Disc Type: BMT-55
Driven Tool Power / Torque: 14 kW / Nm
Max. Driven Tool Speed: 10000 rpm
Machine Dimensions
Machine Area (L×W×H): 3510 × 2300 × 2050 mm
Loader Area (L×W×H): 1060 × 2060 × 3400 mm
Machine Weight: 7500 kg
