Granulate machine
Send us your application details. Our engineering and sales team will contact you regarding Granulate Extrusion Machines.
Product Description:

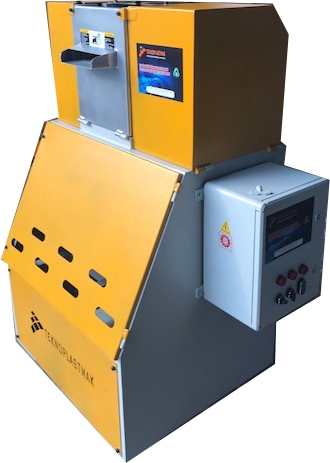

The Granulate Extrusion Machine is an advanced recycling and reprocessing unit engineered for high-efficiency plastic granulation.
It is suitable for a wide range of materials including HDPE, LDPE, LLDPE, PP, ABS, XPS, PC, OPP, and PS, ensuring consistent pellet quality across various polymer types.
Each machine is custom-designed, with special attention to screw geometry, degassing, and filtering systems that remove trapped gases and impurities during extrusion.
The machine’s ceramic heating system delivers high thermal efficiency, while pressure-sensitive filtration ensures extended operational life.
It includes both manual and PLC control systems for ergonomic operation and continuous process optimization.
Key Technical Features:
Material Compatibility: HDPE, LDPE, LLDPE, PP, ABS, XPS, PC, OPP, PS
Screw Design: Tailored for each polymer type; diameters Ø100–Ø160 mm
Processing Capacity: 120–850 kg/h
Heating System: Ceramic resistors for maximum thermal efficiency
Degassing Unit: Dual-stage system for effective gas removal
Filter System: Pressure-sensor controlled filtration for improved quality
Control System: Manual + PLC control options
Energy Efficiency: Low consumption via optimized fan housing design
Build: Ergonomically developed and continuously improved through R&D
