PLN3000/Unfolding Machine
Send us your application details. Our engineering and sales team will contact you regarding PLN3000/Unfolding Machine.
PLN3000/Unfolding Machine,

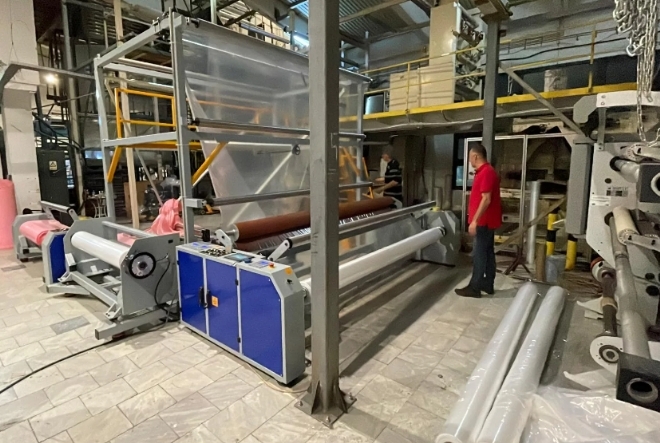

A fully automated, high-speed system engineered for the unfolding and rewinding of HDPE and LDPE film materials. Designed to expand film width efficiently, it seamlessly integrates into production lines and optimizes the material for downstream applications.
Technical Specifications:
Unwinder Film Width: 500–1500 mm
Unwinder Bobbin Diameter: 700 mm
Rewinder Film Width: 1000–3000 mm
Rewinder Bobbin Diameter: 350 mm
Film Type: HDPE, LDPE (40–100 microns)
Operating Speed: 75 m/min

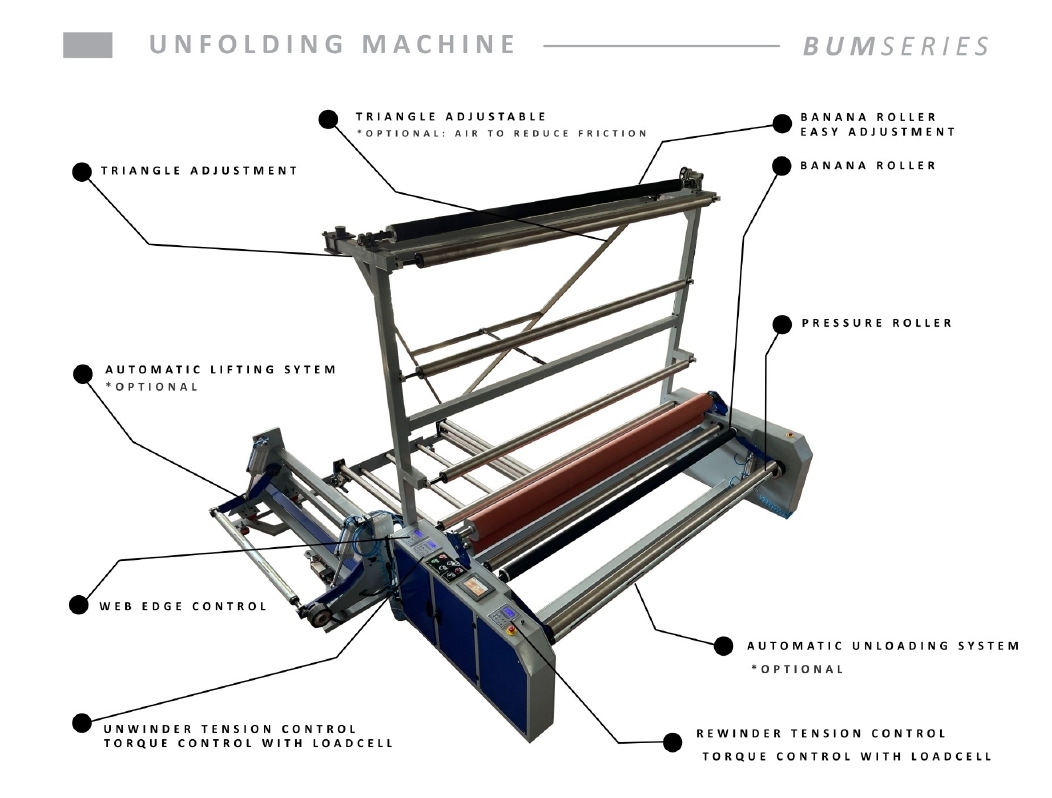

Rewinding System: Includes tension control unit and load cell
Edge Control: Fully automatic, analog fork sensor at the unwinder module
Bobbin Feed System: Magnetic brake
Banana Rollers: Located at the triangle and rewinder sections
Shaft System: Air shaft
Loading Method: Manual (Automatic optional)
