Edge Guide

Name: Edge Guide
Brand: PME Turkey

Engineering SupportTell us your material, width, output and application. We help configure the right machine.

Worldwide DeliveryExport, installation and commissioning support for international projects.

After-SalesTechnical assistance and spare parts support.

Request Technical Offer WhatsApp

Product ID 90Category Edge Guide

Product Information

Edge Guide

Microprocessor Based:
- Utilizes advanced microprocessor technology for precise control.
High Accuracy:
- Ensures high-precision centering control.
Automatic Centering (Center) Feature:
- Offers an automatic centering function for efficient operation.
Constant Speed, Sensor Dependent, and Line Speed Operation:
- Capable of working at a constant speed, adapting to sensor input, and synchronizing with line speed.
Mechanical or Electronic Switch for Limit Stop:
- Flexibility to use either mechanical or electronic switches for limit stop functionality.
Turkish / English Language Option:
- Provides language options, supporting Turkish and English.
Product Release Control:
- Enables control over the release of the product.
Easy Operation and Assembly:
- Designed for user-friendly operation and easy assembly.
Contact at the End of the Determined Period:
- Ability to initiate contact at the end of the predetermined period when limit switches are reached.
Synchronous Operation with Line Speed:
- Can operate synchronously with the line speed for efficient processing.
Screen Display of Malfunctions:
- Malfunctions are displayed on the screen for quick diagnosis.
Memory Retention during Power Outages:
- Keeps values in memory even when power is cut, ensuring continuity.
Edge Disorder Visualization on Screen:
- Displays the edge disorder of the product on the screen for easy monitoring and troubleshooting.

🔹 Key Features

Microprocessor Precision: Advanced electronic control ensures reliable edge correction.
Automatic Centering: Continuous monitoring and auto-adjustment for film centering.
Multi-Mode Operation: Works in constant, sensor-based, or line-speed synchronized modes.
Bilingual Interface: Turkish and English menu options.
Error Display System: Faults and edge deviations are shown instantly on the screen.
Memory Backup: Retains settings even during power failures.
Flexible Limit Stop: Choose mechanical or electronic stop control.
Plug-and-Play Assembly: Simplified installation and calibration.

🔹 Detailed Description

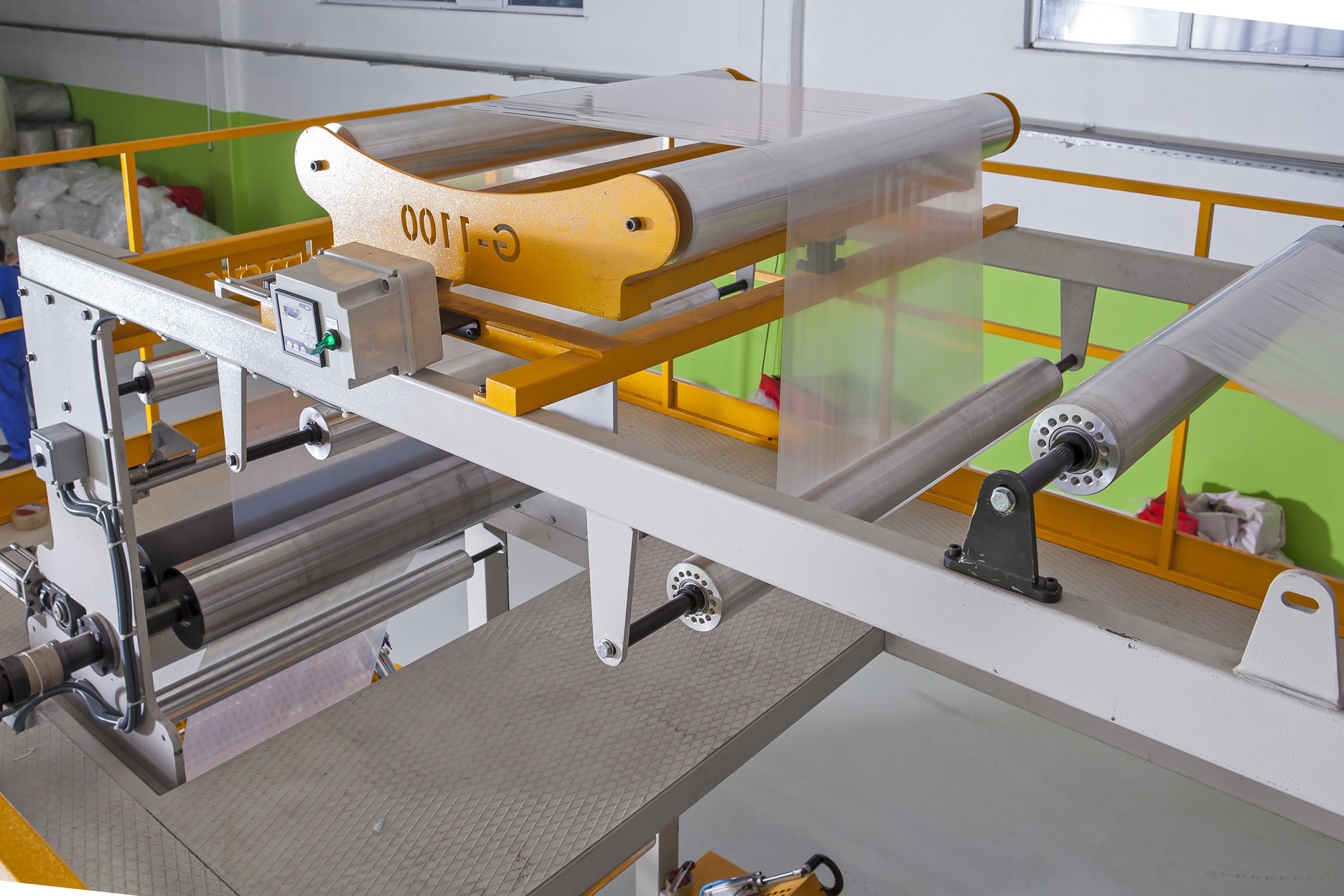

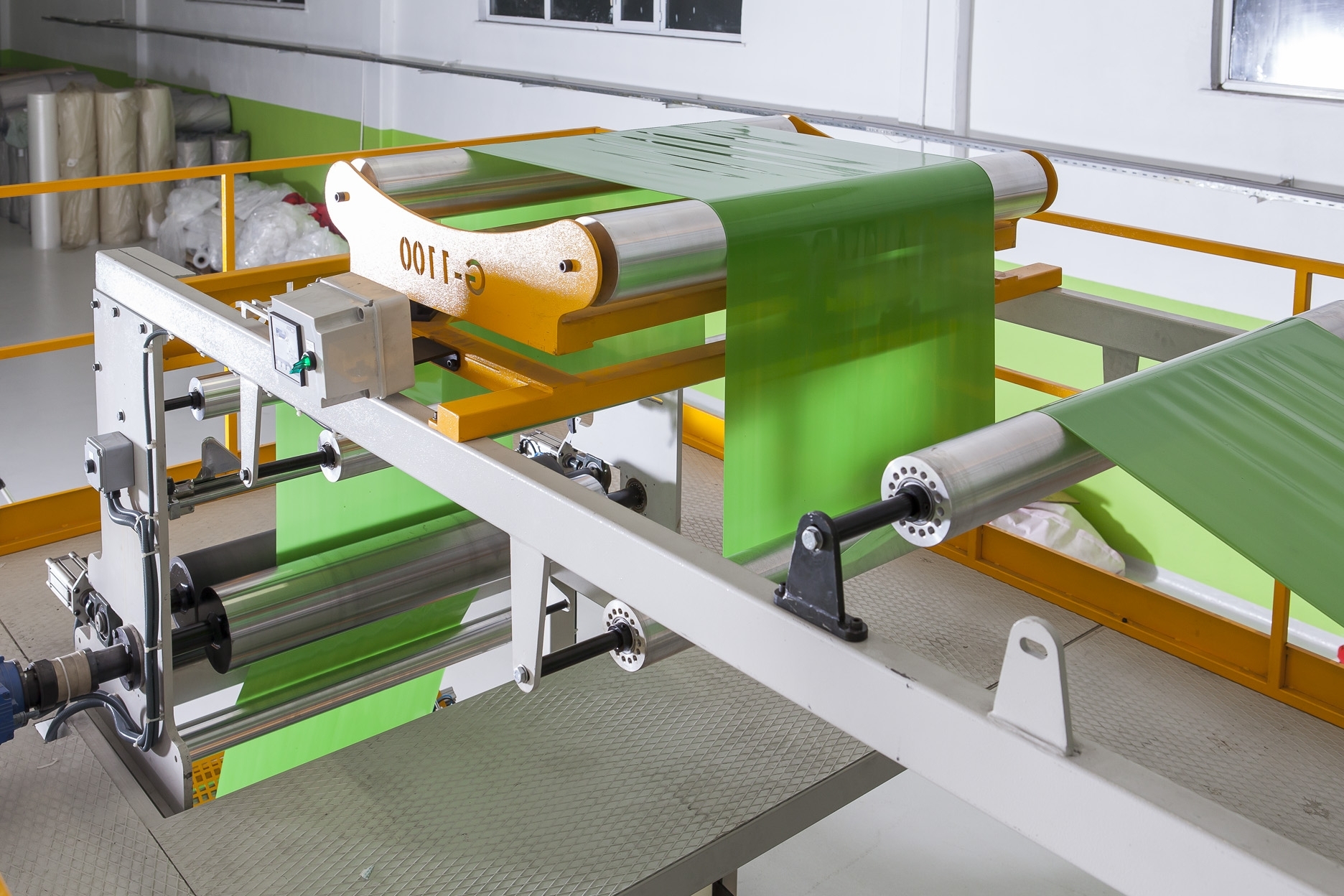

PME Turkey’s Edge Guide System is a robust and intelligent web alignment solution designed to ensure consistent film positioning throughout the production process.
The microprocessor controller analyzes sensor data and makes real-time corrections to keep the film precisely centered.
It can operate in three modes — constant speed, sensor-dependent, and line-speed synchronized — adapting to any production requirement.

The system supports Turkish and English languages, offering ease of use for international operators.
Its fault display and edge disorder visualization allow quick diagnostics, while non-volatile memory ensures that all parameters remain saved after power outages.
Whether installed on film extrusion, printing, or slitting lines, this system guarantees stable web tracking, higher efficiency, and reduced material waste.
