350-1520 kW
Send us your application details. Our engineering and sales team will contact you regarding EAW.VI+1 Serie Air Cooled Chiller.

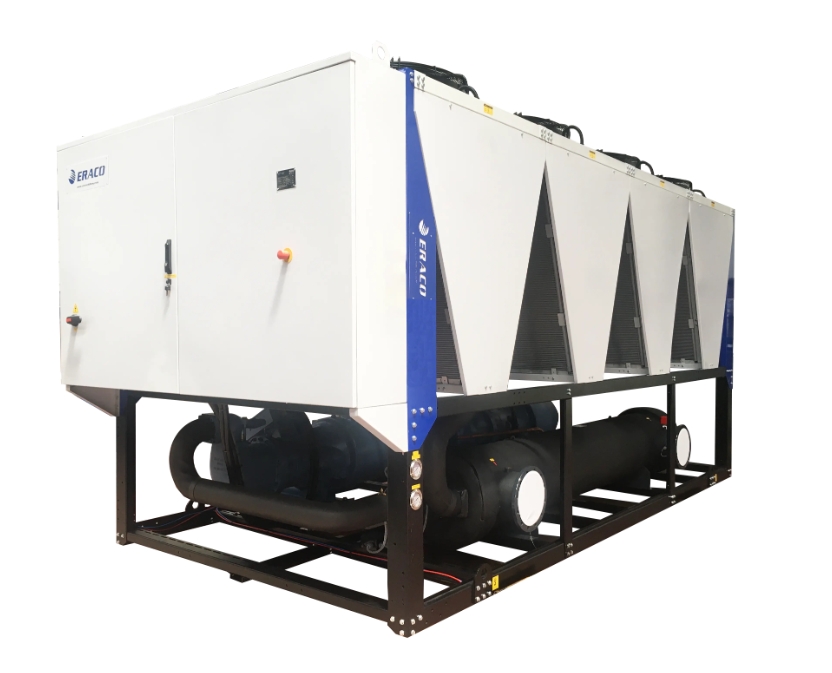

EAW.VI+1 Series Air Cooled Chiller Units are designed to meet the demanding water cooling requirements of commercial and industrial facilities. Equipped with inverter-driven screw compressors, these air cooled chiller systems provide precise capacity control, high energy efficiency, and stable operation across a wide range of load conditions.
High-efficiency heat transfer is achieved through the combination of axial fans, shell & tube evaporators, and V-type microchannel condenser design, ensuring reliable performance even in harsh ambient environments. System operation, safety, and monitoring are managed via a PLC-based control system, making the EAW.VI+1 Series suitable for modern industrial processes and automated facilities.
1 to 3 inverter-driven screw compressors
1 to 3 independent cooling circuits for flexible capacity control
Compatible with R134A and R513A refrigerants
V-type microchannel condenser for efficient heat rejection
Shell & Tube evaporator for long service life and reliable heat exchange
Electronic expansion valve for precise refrigerant flow control
Axial AC fans as standard; EC fans available as an option
Designed for extreme conditions with ambient temperature range from -40°C to +53°C
Water outlet temperature range from +4°C to +20°C, suitable for a wide variety of industrial cooling applications
The EAW.VI+1 Series Air Cooled Industrial Chillers combine inverter technology, high cooling capacity, and robust mechanical design, making them an ideal solution for facilities requiring energy-efficient, reliable, and flexible industrial cooling systems.
