ABA Coex Machine
Send us your application details. Our engineering and sales team will contact you regarding A-B-A W-900 CoEx Film Machine.
Product Description:
The ABA W-900 CoEx Film Machine is a high-performance co-extrusion system for the production of HDPE and LDPE plastic films with a maximum width of 800 mm.
It delivers excellent film quality, consistent thickness, and stability for packaging and industrial applications.
Equipped with Ø50–Ø60 mm screws, a fixed die head, and an adjustable 6-meter height, the system combines precision and reliability.

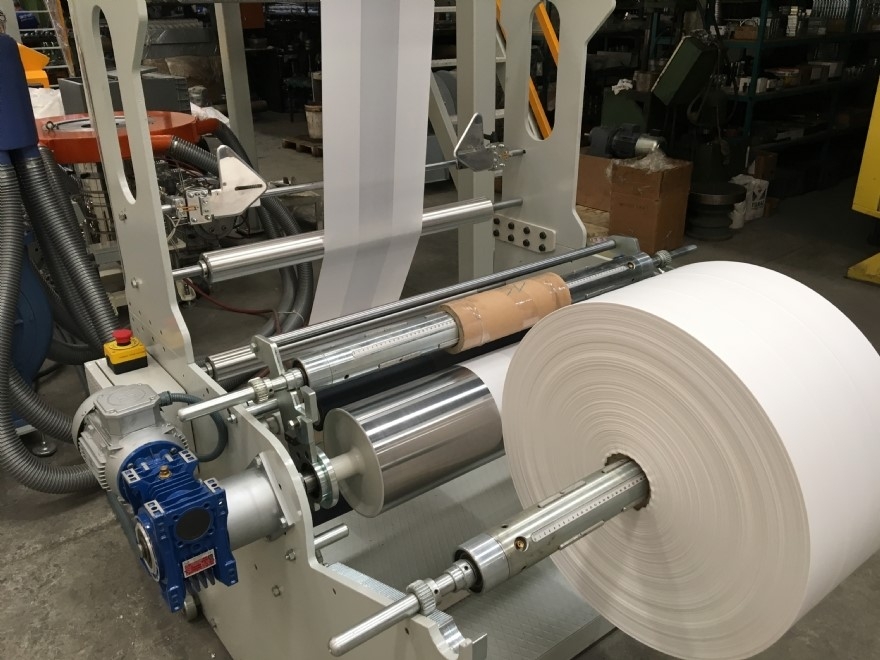

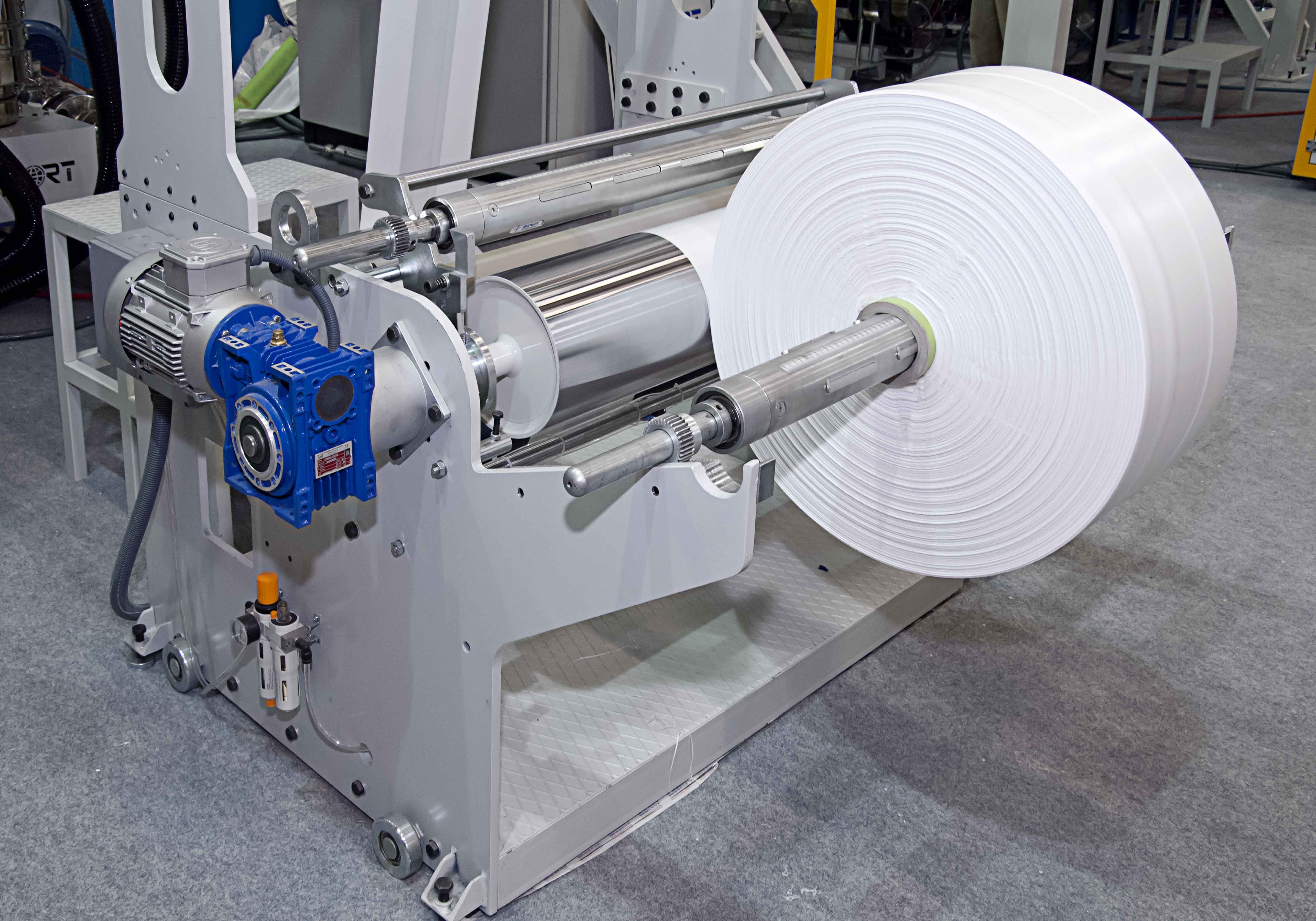

The vertical or horizontal rotating tower allows flexible installation options, and the automatic or manual winder ensures smooth film handling.
Technical Specifications:
Maximum Film Width: 800 mm
Film Thickness: HDPE 0.008–0.200 mm / LDPE 0.025–0.250 mm
Production Capacity: 120 kg/h
Screw Diameter: Ø50 mm – Ø60 mm
Die Type: Fixed
Winder (Optional): Automatic or Manual
Machine Height: 6 m (Adjustable)
Tower Type: Vertical or Horizontal Rotating
